Key Features
The engine adopts advanced combustion technology and an exhaust gas treatment system, delivering cleaner emissions, reduced environmental pollution, and more economical fuel consumption.
Technical data

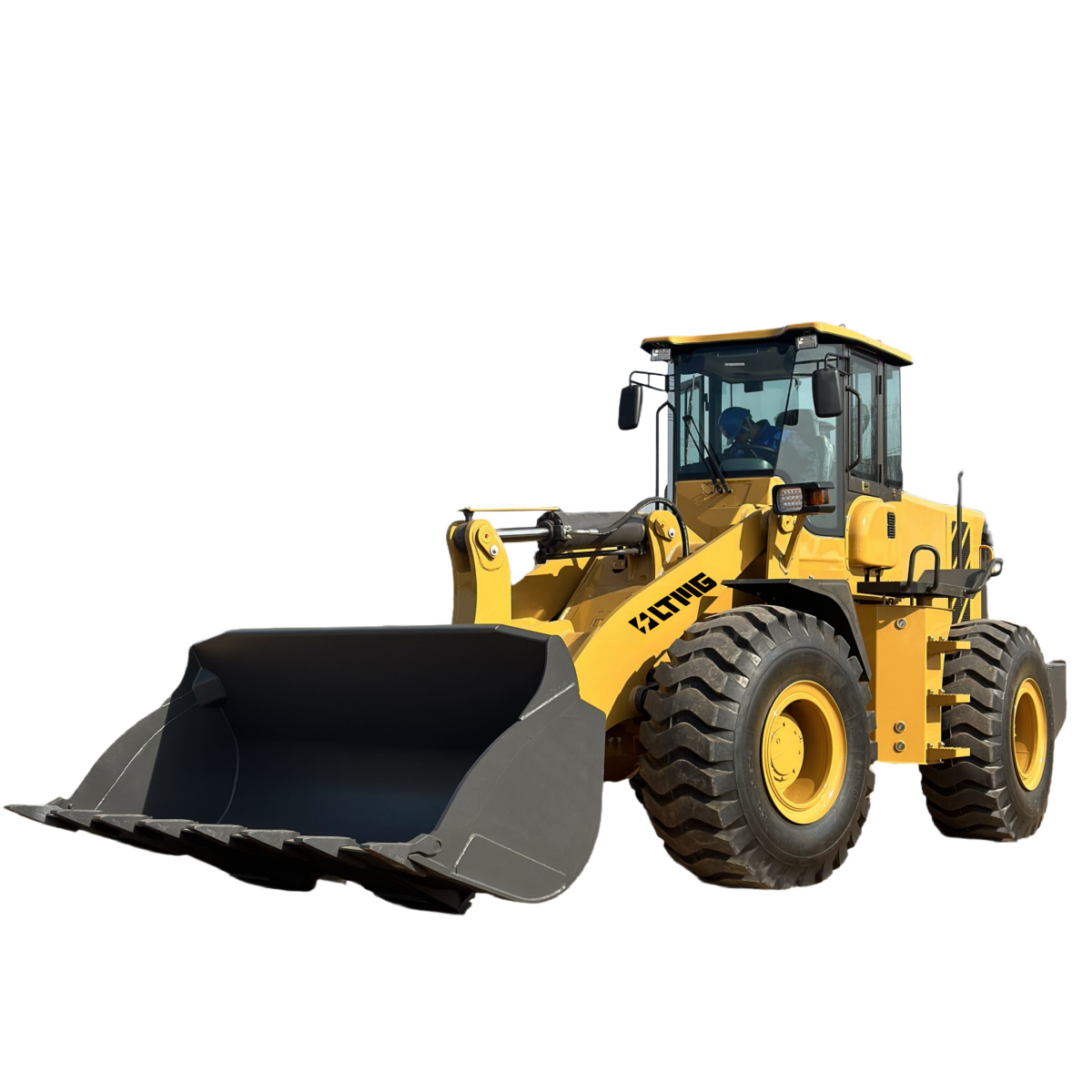

型号LT956
Overall Dimensions8080*2980*3420 mm
Operating Weight16590 kg
Rated Load5000 kg
Bucket Capacity3 m³
Rated Power162 kW
EngineWEICHAI WP10G220E /
Wheelbase3000 mm
Wheel Tread2250 mm
Vehicle Width2980 mm
Min. Turning Radius7100 mm
Steering Angle±35 °
Max. Tractive Force160 kN
Max. Breakout Force175 kN
Max. Torque900 N·m
Rated Speed2000 r/min
Total Cycle Time10.2 s
Transmission Oil Capacity45 L
Antifreeze Capacity280 L
Engine Oil Capacity250 L
Axle Gear Oil Capacity20 L
Service BrakeAir-jack oil pliers disc type /
Service BrakeAir-jack oil pliers disc type /
Parking and Emergency BrakeManual wire pulling pliers disc type /
Parking and Emergency BrakeManual wire pulling pliers disc type /
