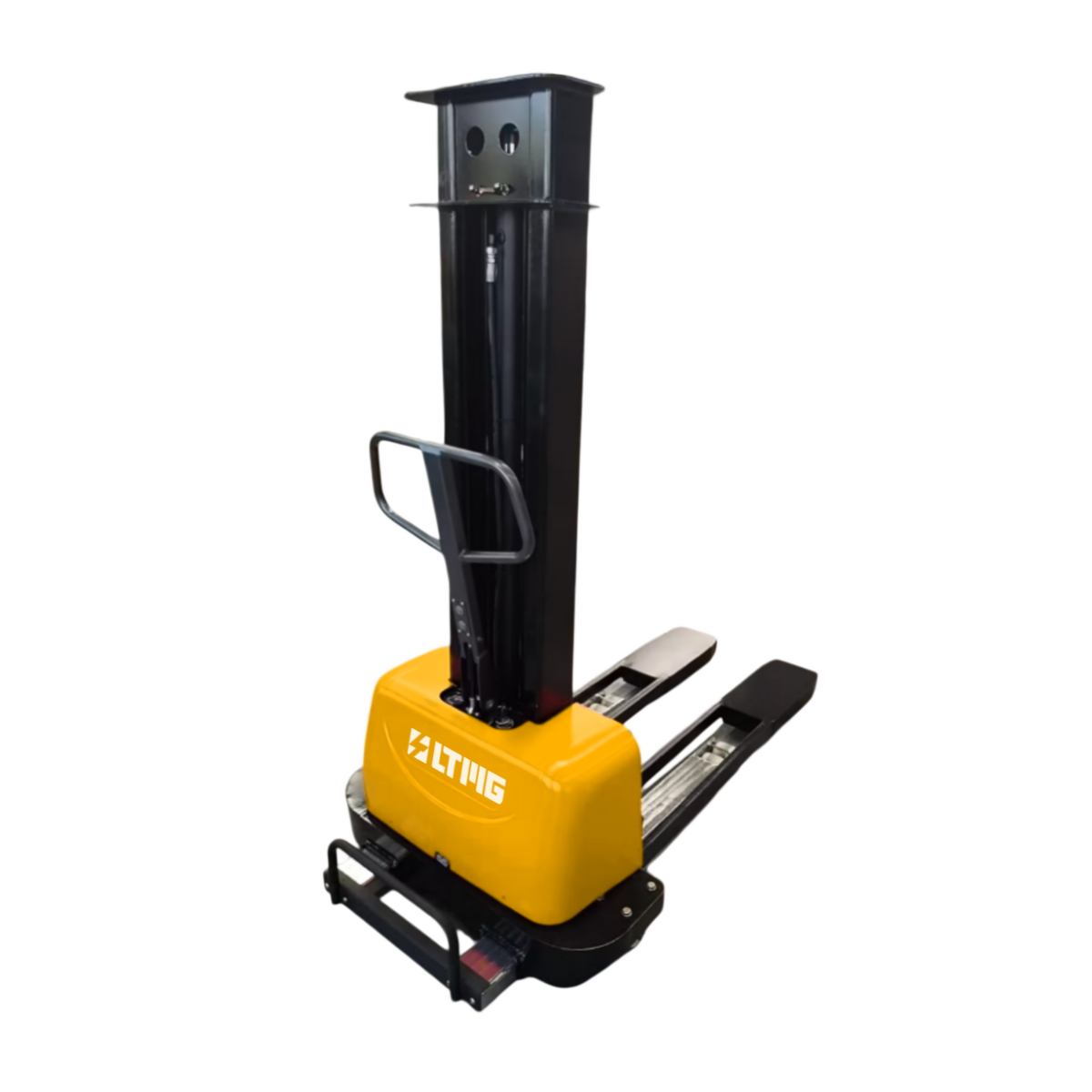

Semi-Electric Self-Lifting Stacker
SERB10
1000 kgRated Capacity
420 mmLoad Center
800/900/1000/1100/1200/1300/1500/1600 mmLift Height
Key Features
The equipment is reinforced with a thickened steel plate for greater structural rigidity, providing more stable loading and unloading while significantly enhancing load capacity for heavier-duty applications.
Technical data
型号SERB10
Power TypeLead-acid Battery /
Operation TypeWalkie /
Rated Capacity1000 kg
Load Center420 mm
Wheelbase780 mm
Service Weight285/290/295/300/305/310/319/324 kg
Front Wheel Sizeφ70×60 mm
Universal Wheel Sizeφ100×50 mm
Middle Wheel Sizeφ65×30 mm
Front Wheel Track395/518 mm
Rear Wheel Track708/928 mm
Overall Height (Mast Lowered)1166/1256/1366/1466/1566/1666/1866/1966 mm
Lift Height800/900/1000/1100/1200/1300/1500/1600 mm
Overall Length1544 mm
Overall Width835/955 mm
Fork Length1150 mm
Fork Width193 mm
Fork Thickness60 mm
Distance Between Forks565/685 mm
Outrigger Length780 mm
Maximum Lifting Speed55 mm/s
Maximum Lowering Speed100 mm/s
Lift Motor Power1.6 kW
Battery Voltage12 V
Battery Capacity52 Ah
Battery Weight13.5 kg
