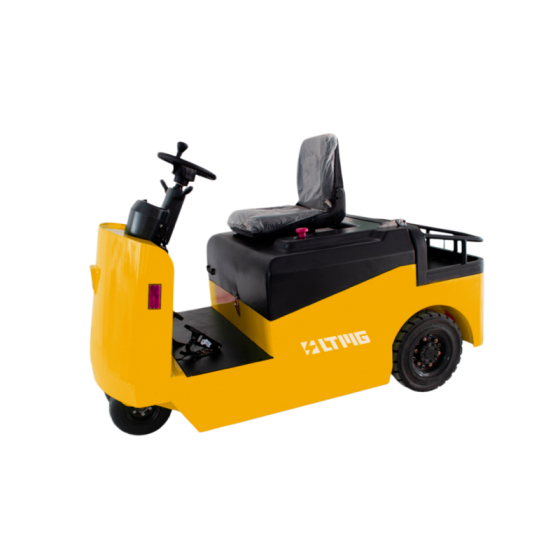

Electric Tow Tractor（Seat Type）
TB03
1385 mmVehicle Height
880 mmSeat Height
300/380 mmTowing Hitch Height
Key Features
Features a CURTIS controller with multiple automatic protection systems for reliable and safe operation.
Technical data
型号TB03
Power TypeElectric /
Operator TypeSeated type /
Wheelbase1040 mm
Vehicle Height1385 mm
Seat Height880 mm
Towing Hitch Height300/380 mm
Pedal Height400 mm
Rear Overhang480 mm
Loading Platform Width/ mm
Vehicle Length1710 mm
Vehicle Width845 mm
Ground Clearance100 mm
Turning Radius1460 mm
Service Weight (Including Battery)905 kg
Battery Weight205 kg
Drive Motor Power2.5 kW
Battery TypeLead-acid /
Battery Voltage / Nominal Capacity24/240 V / Ah
Charger24/30 V / A
Rated Towing Capacity3000 kg
Rated Drawbar Pull750 N
Tire TypeRubber solid tire /
Front Tire Size3.50-5 /
Rear Tire Size4.00-8 /
Driving Speed (Unladen / Laden)7/5 km/h
Gradeability (Unladen / Laden)8/6 %
Maximum Drawbar Pull (Laden)2200 N
Service BrakeMechanical + hydraulic /
Drive Control TypeAC /
Sound Level at Driver's Ear (EN 12053)75 dB(A)
