Key Features
The imported hydraulic motor delivers stronger and more reliable driving performance.
Technical data

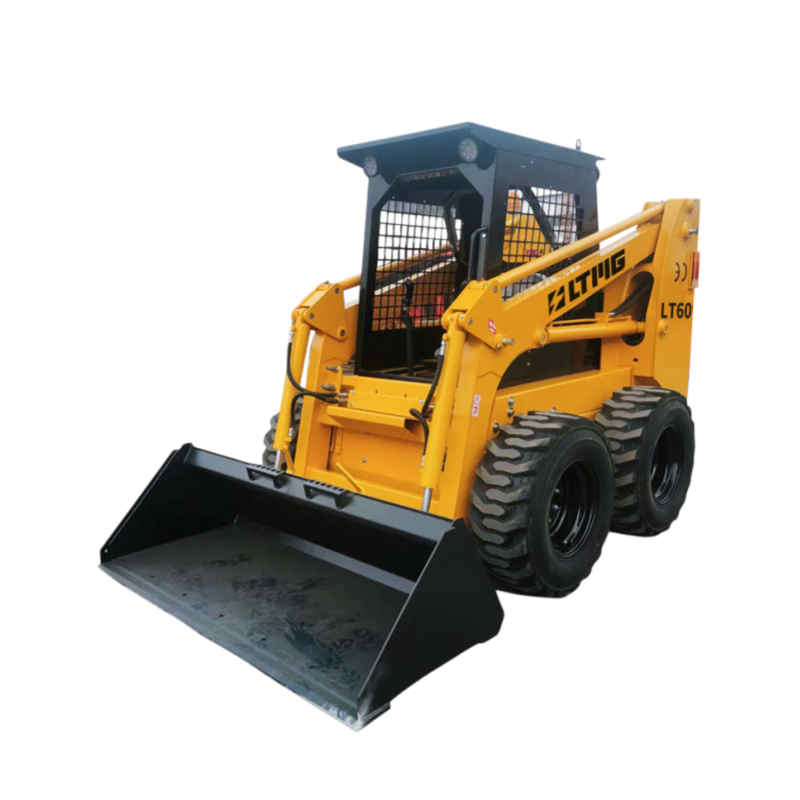

型号LT60
Operating Weight3200 kg
Rated Load850 kg
Bucket Capacity0.4 m³
Max. Speed12 km/h
Engine BrandXINCHAI /
Engine ModelA498BPG /
Rated Power45/2500 kW/rpm
Engine Displacement3.17 L
Overall Operating Height4000 mm
Height to Bucket Hinge Pin3100 mm
Height to Top of Cab2160 mm
Height to Bottom of Level Bucket2933 mm
Overall Length without Bucket2750 mm
Overall Length with Bucket3490 mm
Dumping Angle at Maximum Height40 °
Dumping Height2400 mm
Dumping Reach750 mm
Rollback Angle on Ground30 °
Rollback Angle at Full Height104 °
Wheelbase991 mm
Ground Clearance205 mm
Angle of Departure20 °
Front Turning Radius without Bucket1198 mm
Front Turning Radius1958 mm
Rear Turning Radius1728 mm
Rear Axle to Bumper1208 mm
Tread Width1500 mm
Overall Width1880 mm
Bucket Width1880 mm
Tire Model12-16.5 /
Max. Traction≥25.40 kN
Max. Breakout Force≥18.4 kN
Lifting Time of Boom7 s
