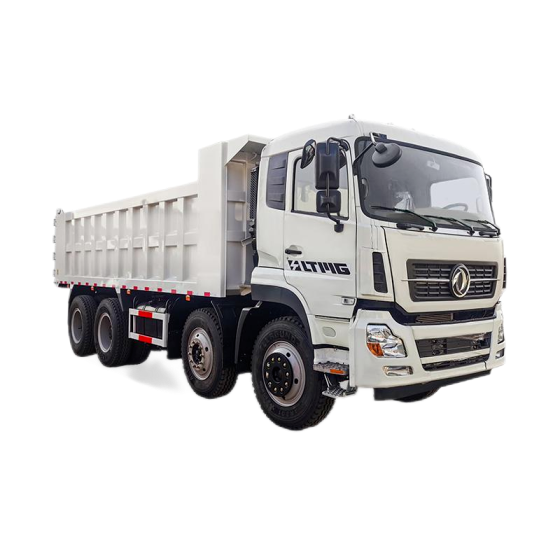

Dumper
LMDT250
8600 × 2500 × 3450 mmOverall Dimensions
14000 kgOperating Weight
400 PSEngine Power
Key Features
Equipped with real-time data displays and automated functions that enhance decision-making and operational confidence.
Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.
Technical data
ModelLMDT250
Clutch OperationHydraulic Assisted /
Clutch TypeSingle Plate /
Cabin EquipmentAir conditioning; four-point suspension; electric window lifter; oil-bath air filter; two warning lights /
Drive PositionLeft-Hand Drive /
CabinH3000, Flat Cabin, One Sleeper /
Rear SuspensionSemi-Elliptical Leaf Springs /
Front SuspensionSemi-Elliptical Leaf Springs /
Chassis FrameTwo-layer frame (8 + 8 mm); height 320 mm; width 90 mm /
Dump Body ShapeRectangular and "田" /
Dump Body Side Thickness6 mm
Dump Body Bottom Thickness8 mm
Hydraulic Cylinder BrandNormal Brand /
Lift TypeMiddle Lift /
Rear Axle Load32000 kg
Front Axle Load9500 kg
Tire TypeTubeless Tire /
Clutch DiameterΦ430 mm
Emission StandardEuro II /
Overall Dimensions8600 × 2500 × 3450 mm
Operating Weight14000 kg
Maximum Payload36000 kg
Engine ModelWP12.400E201 /
Dump Body Volume19.32 m³
Maximum Torque1800 N·m
Maximum Torque Speed1000-1400 rpm
Fuel Tank Capacity380 L
Engine Displacement11.596 L
Engine Power400 PS
Gross Vehicle WeightUp to 50000 kg
Dump Body Dimensions5600 × 2300 × 1500 mm
Parking/Emergency BrakeSpring Brakes / Rear Booster /
Brake SystemFull Air - Dual Circuit /
Rear AxleMAN 16 Ton × 2, Drum Brake, Double Reduction /
Front AxleMAN 9.5 Ton, Drum Brake /
Steering TypeRecirculating Ball /
Steering AssistancePower Assisted /
Fuel Tank QuantityOne /
Fuel Tank MaterialIron /
Battery Capacity165 each Ah
Battery Voltage12 each V
Battery Quantity2 /
Electrical GroundNegative Earth /
Wheelbase3775 + 1400 mm
Tire Size13R22.5 /
Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
