Key Features
Large hopper angle and high filling factor improve material intake efficiency, while the small turning radius ensures flexible manoeuvrability in tight working conditions.
Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.
Technical data

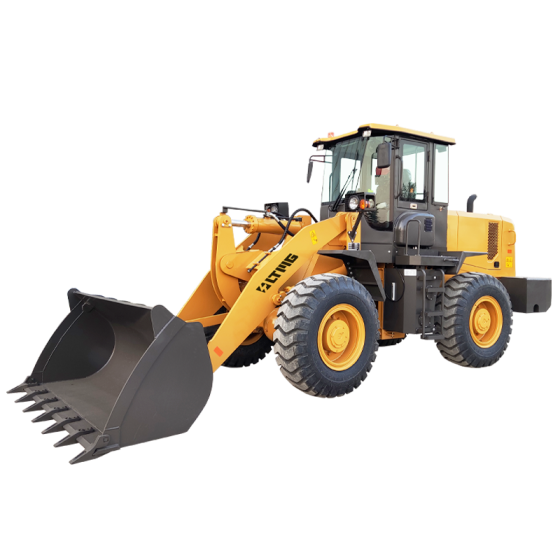

ModelLT930
Operating Weight9850 kg
Rated Load3000 kg
Bucket Capacity1.8 m³
Overall Dimensions7560*2520*3200 mm
Rated Power92 kW
EngineWEICHAI /
Engine ModelWP6G125E /
Wheelbase2880 mm
Wheel Tread1850 mm
Vehicle Width2520 mm
Max. Dumping Height3200 mm
Min. Turning Radius6110 mm
Max. Tractive Force101 kN
Max. Breakout Force98 kN
Max. Torque500 N·m
Rated Speed2200 r/min
Total Cycle Time9.2 s
Gear ShiftForward 4 / Reverse 2 /
Max. Speed39 km/h
Fuel Tank Capacity190 L
Hydraulic Oil Capacity152 L
Antifreeze Capacity26 L
Engine Oil Capacity12 L
Transmission Oil Capacity45 L
Axle Gear Oil Capacity16 L
Service BrakeAir-jack oil pliers disc type /
Parking and Emergency BrakeManual wire pulling pliers disc type /
Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
