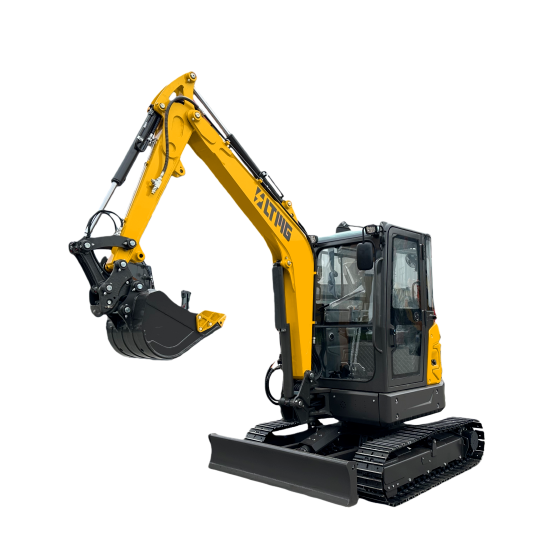

Diesel Tracked Excavator

LTE35

3810 kgOperating Weight
18.5KW/2200rpm kWRated Power
0.12 m³Bucket Capacity

Key Features

Engineered for seamless, fluid movement; the compact, heavy-duty chassis ensures outstanding stability and load-bearing performance across diverse and challenging job sites.

Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.

Technical data

ModelLTE35
Operating Weight3810 kg
Engine ModelKubota D1703 /
Rated Power18.5KW/2200rpm kW
Bucket Capacity0.12 m³
System / Working Pressure22.5 MPa
Swing Speed0-11 rpm
Traveling / Walking Speed2.4/4.4 km/h
Climbing Ability58 °
Max. Excavation Height4800 mm
Max. Unloading Height3406 mm
Max. Excavation Depth3208 mm
Max. Digging Distance5480 mm
Min. Turning Radius- mm
Overall Length4915 mm
Overall Width1720 mm
Overall Height2525 mm
Min. Ground Clearance395 mm
Track Ground Length1670 mm
Track Width300 mm
Bucket Width530 mm
Max. Digging Force30.4 Kn
Ground Pressure32 kPa

Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
