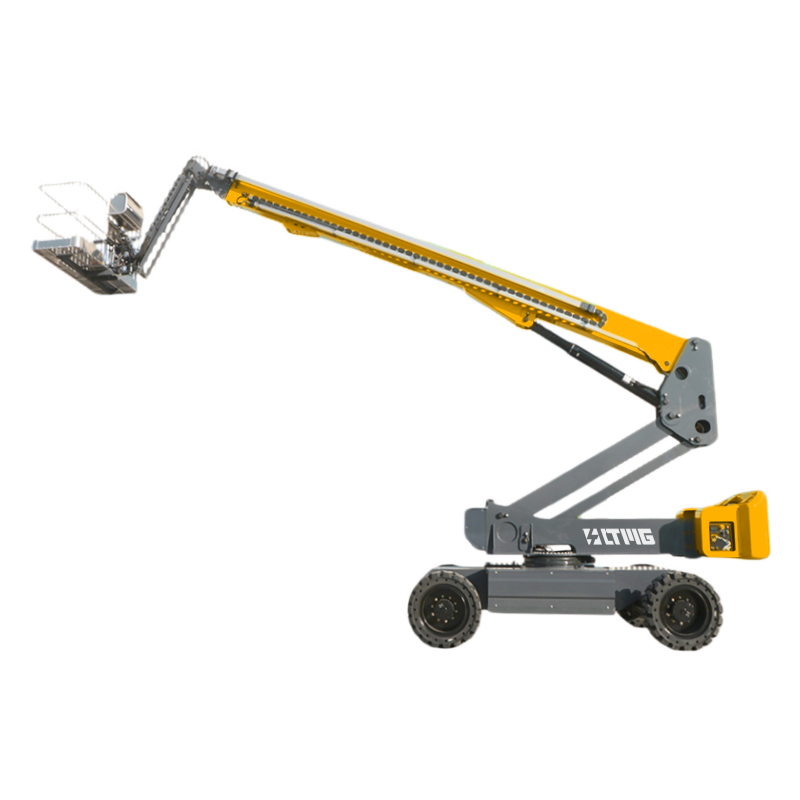

Telescopic Boom Lift
LTZE1820
20.5 mMaximum Working Height
18.5 mMaximum Platform Height
300 kgLoad Capacity
Key Features
Large load capacity across the working range, ideal for aerial installation, maintenance, and inspection tasks.
Technical data
型号LTZE1820
Maximum Working Height20.5 m
Maximum Platform Height18.5 m
Maximum Horizontal Reach13.2 m
Load Capacity300 kg
Length When Stowed9.8 m
Width2.49 m
Height When Stowed2.64 m
Wheelbase2.5 m
Ground Clearance0.3 m
Platform Dimensions1.8 × 0.76 m
Inner Turning Radius/ m
Outer Turning Radius4.18 m
Travel Speed - Stowed5 km/h
Travel Speed - Raised/Extended/ km/h
Gradeability45 %
Tire33×12-20 /
Turntable Speed/ rpm
Turntable Rotation360 continuous °
Platform Leveling/ /
Platform Rotation±80 °
Fuel Tank Capacity/ L
Weight8520 kg
System Voltage12 V
Drive and Steering4×2 /
Engine/ /
Rated Power/ kW
