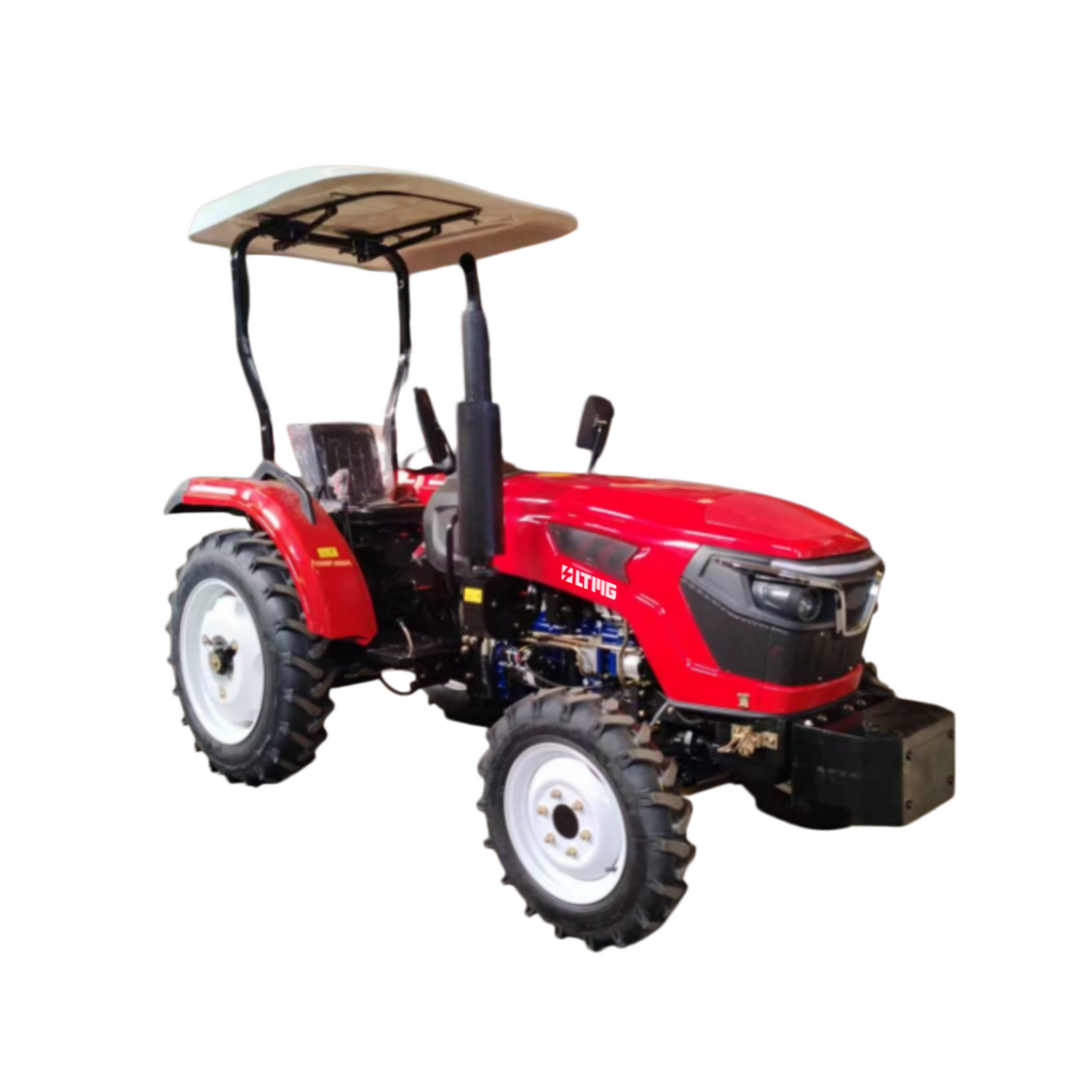

Diesel wheeled Tractor
LTY404
29.4 kWRated Power
1550 kgMinimum Operating Mass
TY 8F+2R (optional 8F+8R) /Gearbox
Key Features
Equipped with a shuttle shift gear structure, it allows for quick transitions between forward and reverse with a single gear engagement.
Technical data
型号LTY404
Drive Type4 × 4 /
Rated Power29.4 kW
Overall Dimensions (L × W × H)3590 × 1550 × 2370 mm
Wheelbase1820 mm
Minimum Ground Clearance300 mm
Minimum Operating Mass1550 kg
Tread (Front / Rear)Front: 1200 (1000–1400), adjustable; Rear: 1200 (1000–1400), adjustable mm
Clutch TypeDry-type, single-acting (optional double-acting) /
Engine4 cylinder /
Rated Speed2400 r/min
GearboxTY 8F+2R (optional 8F+8R) /
PTO Type6 spline, Φ35, Type I /
PTO Rated Power≥25.0 kW
PTO Speed540/720 r/min
Three-Point LinkageRear three-point suspension, Cat. 1 /
Hydraulic OutputSimple valve (optional 1-group/2-group) /
Hydraulic Adjustment ModeInner hydraulic (optional forced hydraulic system) /
Maximum Lifting Force at Frame Center≥7.1 kN
Standard Tyre Size (Front / Rear)6.00–16 / 9.50–24 /
Optional Tyre Size I (Front / Rear)6.50–16 / 11.2–24 /
Other OptionsCabin, air brake, ROP, sunroof /
Optional Tyre Size II (Front / Rear)7.50–16 / 11.2–28 /
Optional Tyre Size III (Front / Rear)7.50–16 / 12.4–24 /
