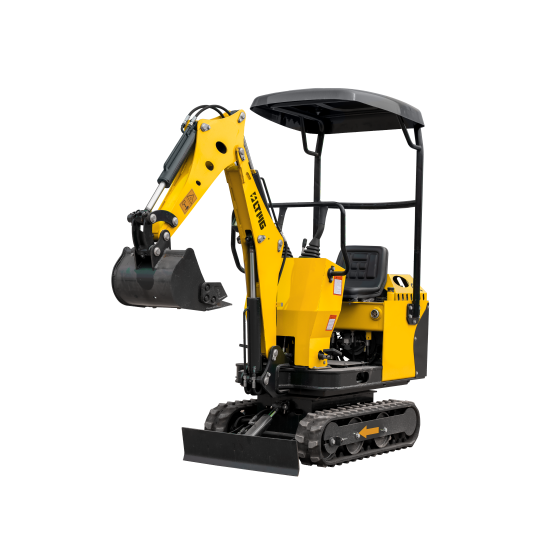

Diesel Tracked Excavator
LTE09
850 kgOperating Weight
7 kWRated Power
0.025 m³Bucket Capacity
Key Features
Powered by a renowned-brand engine that delivers high torque, strong power output, and excellent fuel efficiency.
Technical data
型号LTE09
Operating Weight850 kg
Engine ModelKOOP KD192F /
Rated Power7 kW
Bucket Capacity0.025 m³
System / Working Pressure18 MPa
Swing Speed12 rpm
Traveling / Walking Speed2.2 km/h
Climbing Ability30 °
Max. Excavation Height2560 mm
Max. Unloading Height1780 mm
Max. Excavation Depth1715 mm
Max. Digging Distance2575 mm
Min. Turning Radius1480 mm
Overall Length2600 mm
Overall Width720 mm
Overall Height2030 mm
Min. Ground Clearance80 mm
Bucket Width380 mm
Max. Digging Force7.5 kN
Ground Pressure19 kPa
Track Ground Length1140 mm
Track Width150 mm
