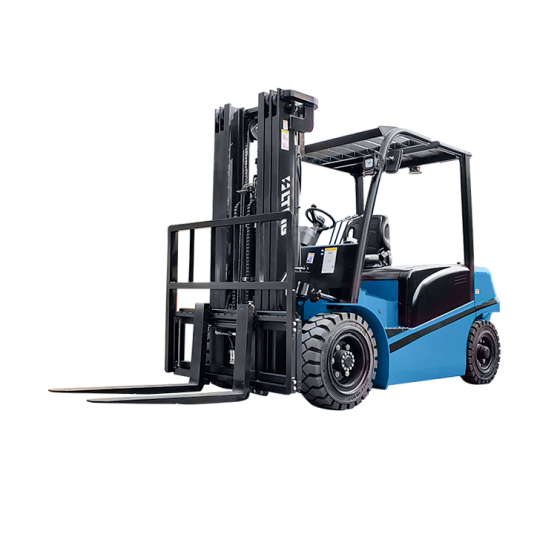

Electric Forklift
FB50(MIN)(Lead-acid)
5000 kgRated Capacity
500 mmLoad Center
3000 mmLift Height
Key Features
Cost-effective lead-acid battery is adopted, which has the characteristics of high-rate discharge performance, no ignitability, large temperature window, zero pollution, high recycling rate, and long service life.
Technical data
型号FB50(MIN)(Lead-acid)
Power TypeBattery —
Rated Capacity5000 kg
Load Center500 mm
Lift Height3000 mm
Fork Size1070×150×50 mm
Mast Tilt Angle (F/R)46185 Deg
Turning Radius2172 mm
Ground Clearance140 mm
Front Overhang565 mm
Max. Gradeability15 %
Wheelbase2100 mm
Overall Weight7200 kg
Total Length without Fork3135 mm
Overall Width1400 mm
Mast Lowered Height2250 mm
Mast Extended Height4280 mm
Overhead Guard Height2255 mm
Max Travel Speed (Full load)13/14 km/h
Max Lift Speed (Full load)280/400 mm/s
Front Tyres28X12.5-15 —
Rear Tyres7.00-12 —
Battery80/630 V/Ah
Wheel Number (F/R)2 X / 2 —
Front Tread1280 mm
Rear Tread1190 mm
Free Lifting Height150 mm
Ground Clearance of Wheel Base Center (Loaded)145 mm
Lateral Fork Adjustment (Max./Min.)1840-300 mm
Lowering Speed<600 mm/s
Battery Weight1565 kg
Driving Motor Power (60 min)18 kW
Lifting Motor Power (S3 15%)26 kW
Driving Motor Control ModeFull AC —
Lifting Motor Control ModeFull AC —
Service Brake / Parking BrakeHydraulic / Mechanical —
Hydraulic System Working Pressure20 MPa
