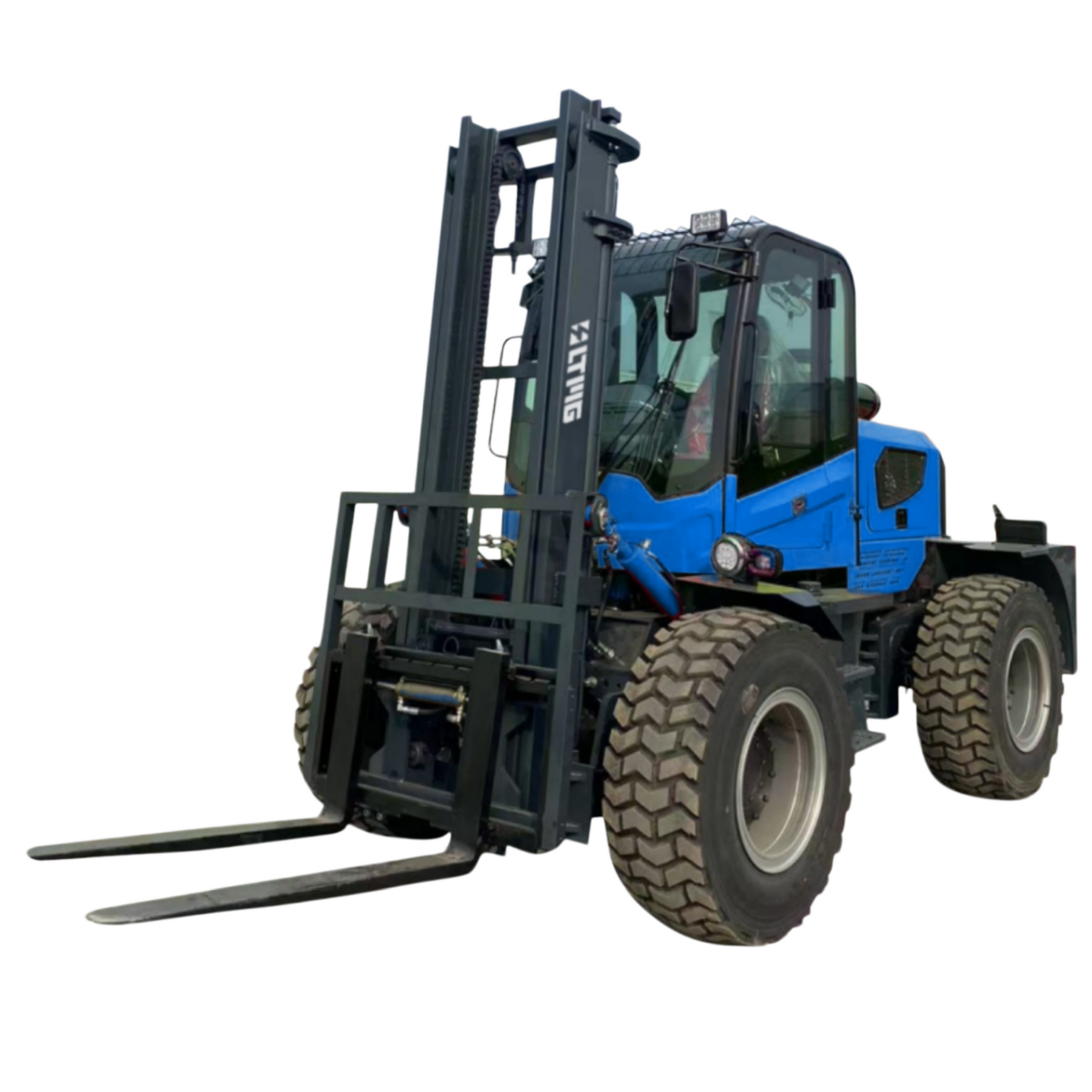

Articulated Rough-terrain Forklift
LTR40(Rear Wheel Steering)
4000 kgRated Capacity
3000 mmLift Height
3800 mmTurning Radius
Key Features
High-quality air filters to meet different emissions, realize the second muffling of the engine and reduce exhaust resistance at the same time.
Technical data
型号LTR40(Rear Wheel Steering)
Rated Capacity4000 kg
Lift Height3000 mm
Fork Length1220 mm
Mast Tilt Angle (F/R)12° Deg
Turning Radius3800 mm
Ground Clearance300 mm
Max. Gradeability<35° %
Overall Weight4900 kg
Mast Lowered Height2350 mm
Engine ModelYunnei4100 -
Engine Power65 / 3200 kW / rpm
Mast Width180 mm
Frame ArticulationFront200 / Rear250 mm
Overall Dimension380*198*260 cm
Tires16/70-20 -
Max. Rated Torque285 / 1200-2800 N·m / rpm
Number of Cylinders4 -
Cylinder Bore x Stroke81x97 mm
Displacement1.99 L
Drive Model4WD -
Gearbox280 -
