Key Features
Advanced Curtis electronic control system with multiple automatic protection functions to ensure safe and reliable operation.
Technical data

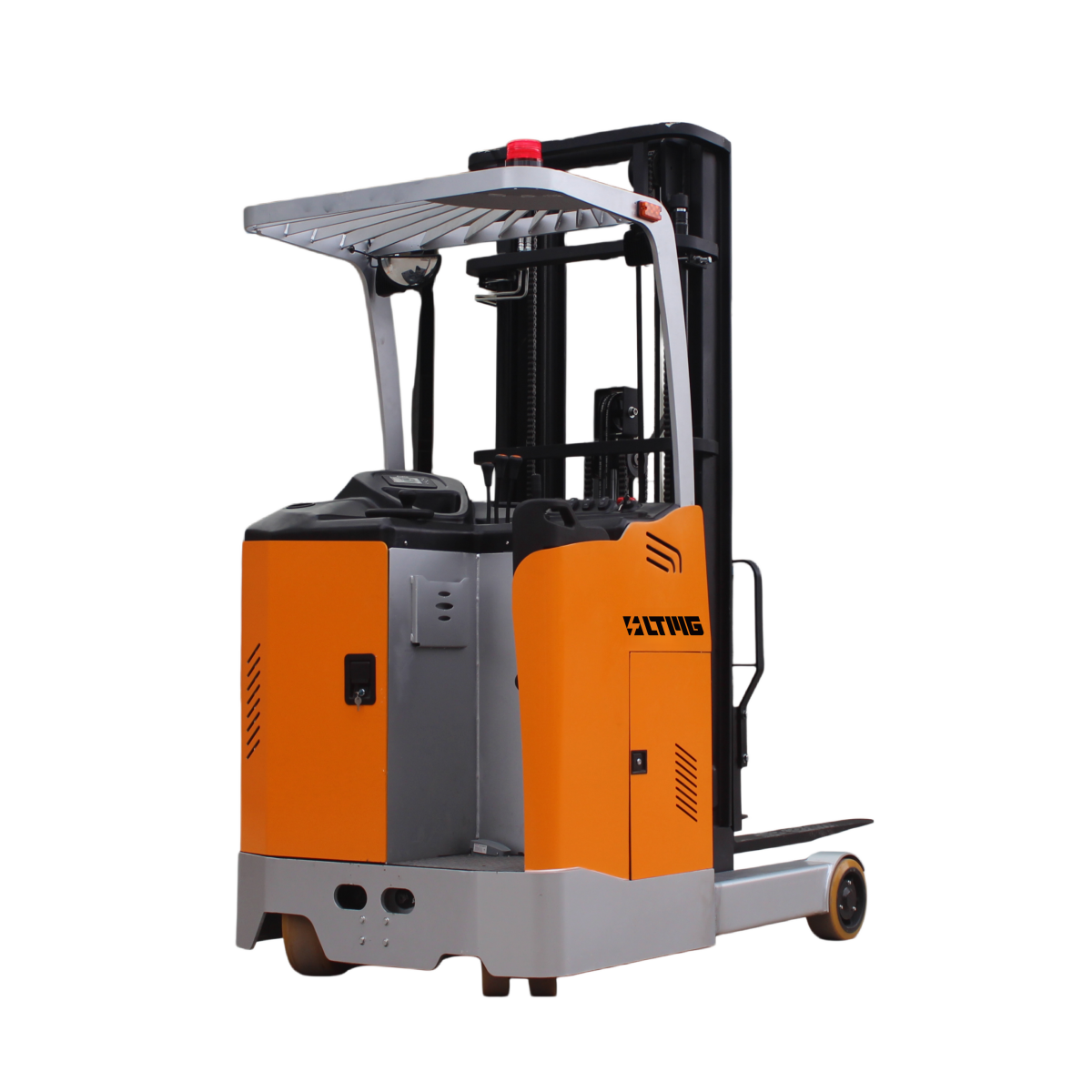

型号FRB20
Power TypeElectric —
Rated Capacity2000 kg
Load Center500 C(mm)
Front Overhang165 X(mm)
Wheel Base1533 Y(mm)
Reach Distance600 mm
Total Weight Including Battery3025 kg
Wheel Size (Front)Ø382×142 Ø×W(mm)
Wheel Size (Rear)Ø267×114 Ø×W(mm)
Balance Wheel SizeØ180×76 Ø×W(mm)
Number of Wheels (Driving wheel, Balance wheel)1×2/2 /
Mast Height (Mast Lowered)2100 h1(mm)
Tilt (Forward/Backward)46086 °
Height of Overhead Guards2280 mm
Lift Height4500 mm
Maximum Height (with block shelves)5460 mm
Overall Length2407 l1(mm)
Length of Body1937 l2(mm)
Overall Width1098 b1(mm)
Fork Dimensions40/122×1070 s/e/l(mm)
Fork Width210-710 b5(mm)
Wheelbase Center85/105 m2(mm)
Aisle Width (Pallet 1000×1200mm)2882 Ast(mm)
Minimum Turning Radius1836 Wa(mm)
Driving Speed (No load/Full load)46304 km/h
Lifting Speed (No load/Full load)300/235 m/s
Lowering Speed (No load/Full load)270/315 m/s
Max. Grade Ability (No load/Full load)≤10% %
Driving Motor6.5 kW
Lifting Motor8 kW
Voltage/Capacity of Battery48V/400Ah V/Ah
