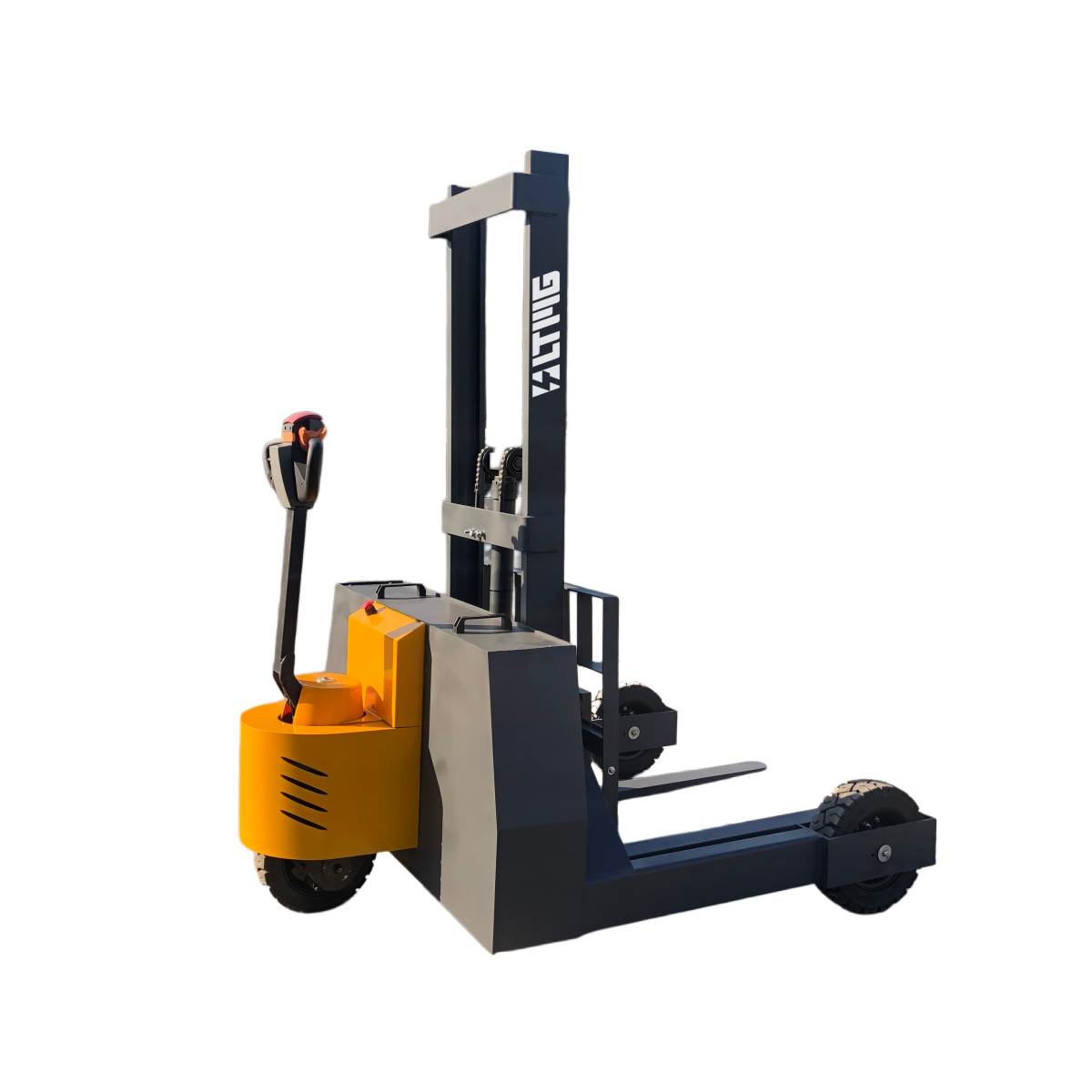

Electric Pallet Stacker
ERB25
2500 kgRated Capacity
500 mmLoad Center
1600/2000/2500/3000 mmLift Height
Key Features
Capable of climbing slopes of up to 10% when unloaded, easily handling ramps within warehouse environments.
Technical data
型号ERB25
Power TypeElectric /
Drive ModeWalkie /
Rated Capacity2500 kg
Load Center500 mm
Wheelbase1430 mm
Service Weight1250 kg
Tire TypeRubber solid tire /
Driving Wheel Sizeφ350×100 mm
Front Wheel Sizeφ360×100 mm
Wheel Quantity1×+2 /
Front Wheel Track1396 mm
Overall Height (Mast Lowered)2080/1580/1830/2080 mm
Overall Height (Fork Raised)2080/2560/3560/3560/1600/2000/2500/3000 mm
Lift Height1600/2000/2500/3000 mm
Ground Height of Operating Handle1450/1150 mm
Overall Length2070 mm
Overall Width1550 mm
Fork Dimensions122×40×1070 mm
Distance Between Forks1250/1550 mm
Outer Fork Width1000 mm
Minimum Ground Clearance120 mm
Turning Radius1578 mm
Travel Speed (Laden/Unladen)46117 km/h
Lifting Speed (Laden/Unladen)65/80 mm/s
Gradeability (Laden/Unladen)46152 %
Braking MethodElectromagnetic brake /
Drive Motor PowerPMSM1.2 kW
Lift Motor Power3 kW
Battery Capacity48V/52Ah Ah
