Mast lifts

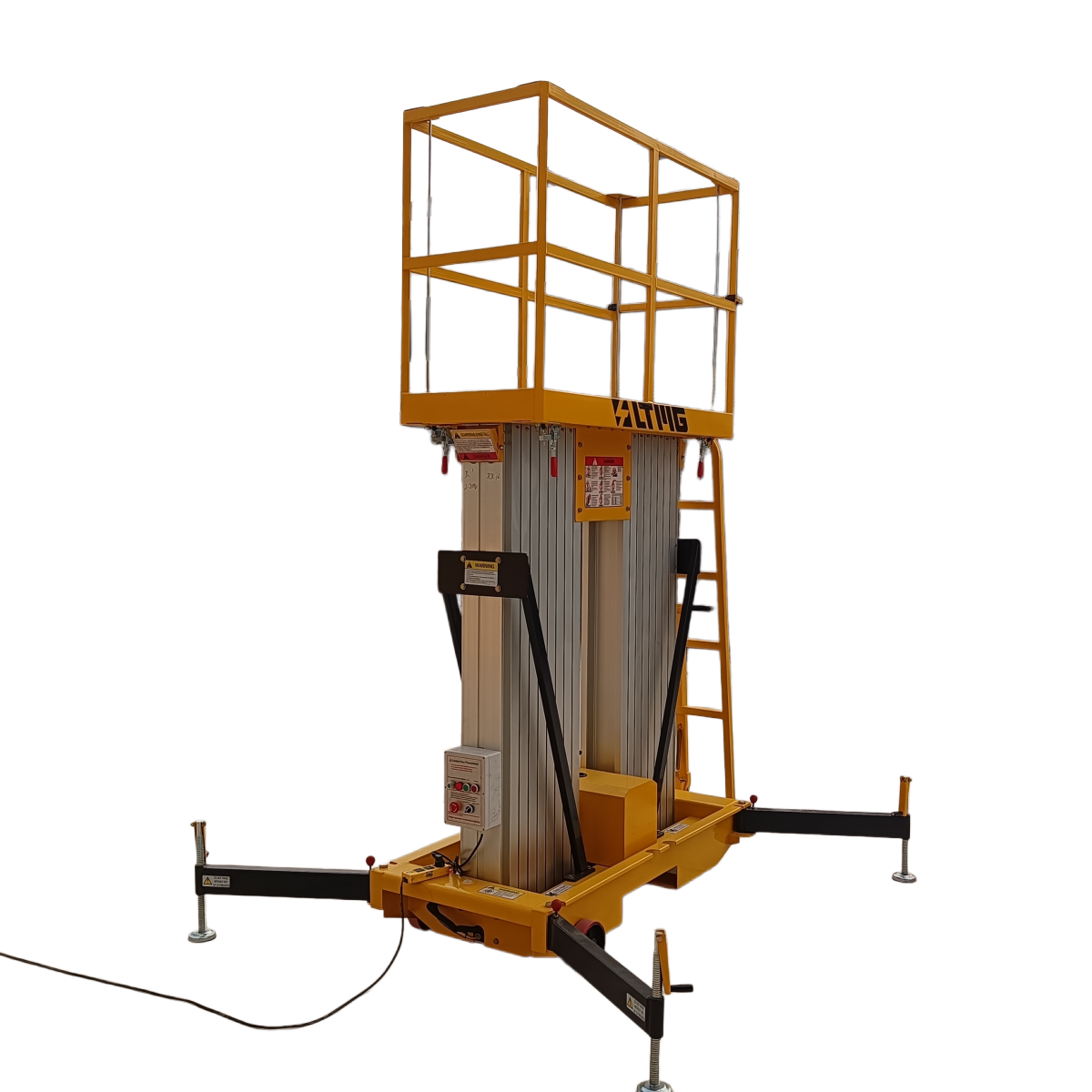

LTAP12-200D
14 mMaximum Working Height
12 mMaximum Platform Height
200 kgSafe Working Load
Key Features
High-strength aluminum alloy delivers both light weight and durability.
Technical data
型号LTAP12-200D
Maximum Working Height14 m
Maximum Platform Height12 m
Working Platform Dimensions1500×630×1100 mm
Overall Dimensions1840×850×2000 mm
Outrigger Size1954×2259 mm
Minimum Ground Clearance0.06 m
Wheelbase1.44 m
Weight730 kg
Safe Working Load200 kg
Maximum Workers2 /
Lifting Motor220/1.5 V/kW
Lifting Speed46086 m/min
TiresFront 8 inches; Rear 7 inches /
Table Material40×20×1.5 /
Rectangular Tube3 mm
Cylinder40mm×2 /
Strut Materialthickness 6.5 /
ElectricalRemote Control Distribution Box /
ChassisQ235 Steel Plate Tube /
