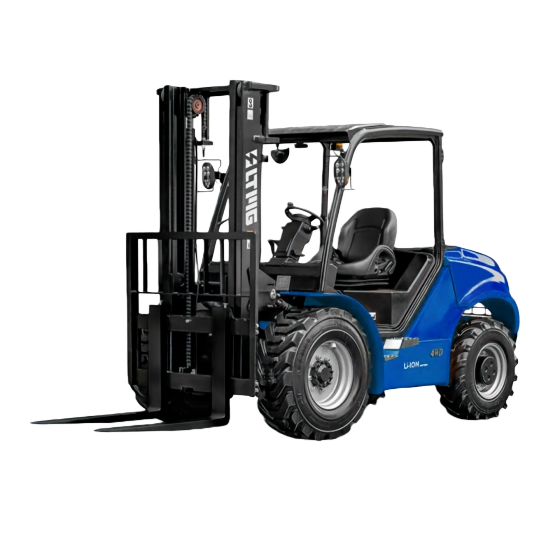

Electric Rough Terrain Forklift
FBR30-4WD
3000 kgRated Capacity
500 mmLoad Center
3000 mmLift Height
Key Features
The efficient high-torque permanent magnet synchronous motor and the high speed ratio speed reducer offer power performance and handling performance rival that of rough terrain internal combustion forklifts.
Technical data
型号FBR30-4WD
Power TypeElectric —
Rated Capacity3000 kg
Load Center500 mm
Lift Height3000 mm
Fork Size50×122×1220 mm
Mast Tilt Angle (F/R)46307 Deg
Turning Radius3300 mm
Ground Clearance255 mm
Front Overhang600 mm
Max. Gradeability55 %
Wheelbase1880 mm
Overall Weight5340 kg
Total Length without Fork3140 mm
Overall Width1599 mm
Mast Lowered Height2350 mm
Mast Extended Height4142 mm
Overhead Guard Height2200 mm
Max Travel Speed24/26 (laden/unladen) km/h
Max Lift/Lifting Speed0.43/0.51 (laden/unladen) m/s
Front TyresPneumatic / 14-17.5-14PR —
Rear Tyres$10.0/75-15.3-12PR$ —
Battery317/150 V/Ah
Engine Power30/15AC kW
Manufacturer's Type DesignationFBR30-4W —
Operator TypeSeated —
Axle Loading (Laden Front/Rear)7200/1140 kg
Axle Loading (Unladen Front/Rear)2340/3000 kg
Wheels (Number Front/Rear)2×/2× —
Tread (Front)1250 mm
Tread (Rear)1190 mm
Free Lift150 mm
Distance Between Fork-Arms290-1150 mm
Ground Clearance (Centre of Wheelbase)290 mm
Aisle Width (Pallets $1000\times1200$ Crossways)5100 mm
Aisle Width (Pallets $800\times1200$ Lengthways)5300 mm
Lowering Speed0.5/0.45 (laden/unladen) m/s
Max. Drawbar Pull42000 N
Service BrakeHydraulic —
Parking BrakeMechanical —
Battery Weight590 kg
Operating Pressure for Attachments16 MPa
