Key Features
Equipped with a standard OPS sensor, the system actively prevents operational accidents by detecting improper driver positioning. Additionally, the electrical infrastructure features waterproof wiring and a multi-channel fuse layout to maximize circuit integrity and long-term stability.
Technical data

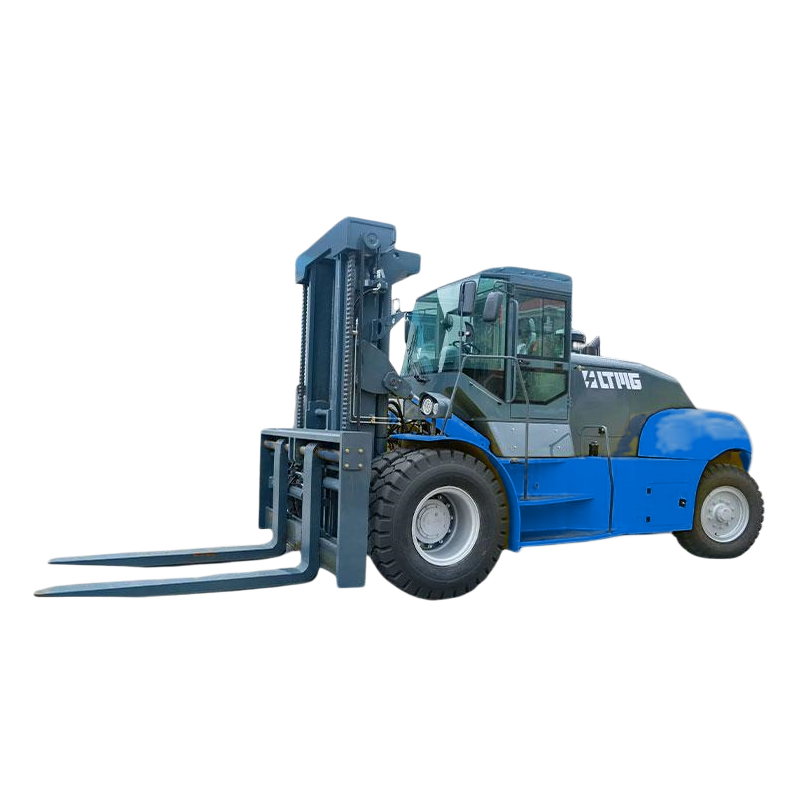

型号FD200
Power TypeDiesel —
Rated Capacity20000 kg
Load Center900 mm
Lift Height4000 mm
Fork Size2200×240×100 mm
Mast Tilt Angle (F/R)46185 Deg
Turning Radius5940 mm
Ground Clearance340 mm
Front Overhang980 mm
Max. Gradeability20/22 %
Wheel Base4200 mm
Overall Weight30000 kg
Total Length (without forks)6300 mm
Overall Width2930 mm
Mast Lowered Height3930 mm
Mast Extended Height5900 mm
Overhead Guard Height3360 mm
Max. Travel Speed (Full/No load)26/30 km/h
Max. Lifting Speed (Full/No load)260/270 mm/s
Front Tyres14.00-24 —
Rear Tyres12.00-24 —
Battery/ V/Ah
Engine ModelWD10G220E21 —
Engine Power162 kW
Tires Qty (Front/Rear)46114 —
Wheel Tread (Front)2080 mm
Wheel Tread (Rear)2130 mm
Overall Length (with forks)8500 mm
Fork Carriage Width2930 mm
Wheelbase Center Min. Ground420 mm
Rear Overhang1020 mm
Traction140 kN
Engine ManufacturerWeiChai —
Cylinder No.6 —
Transmission Gears (F/R)46054 —
