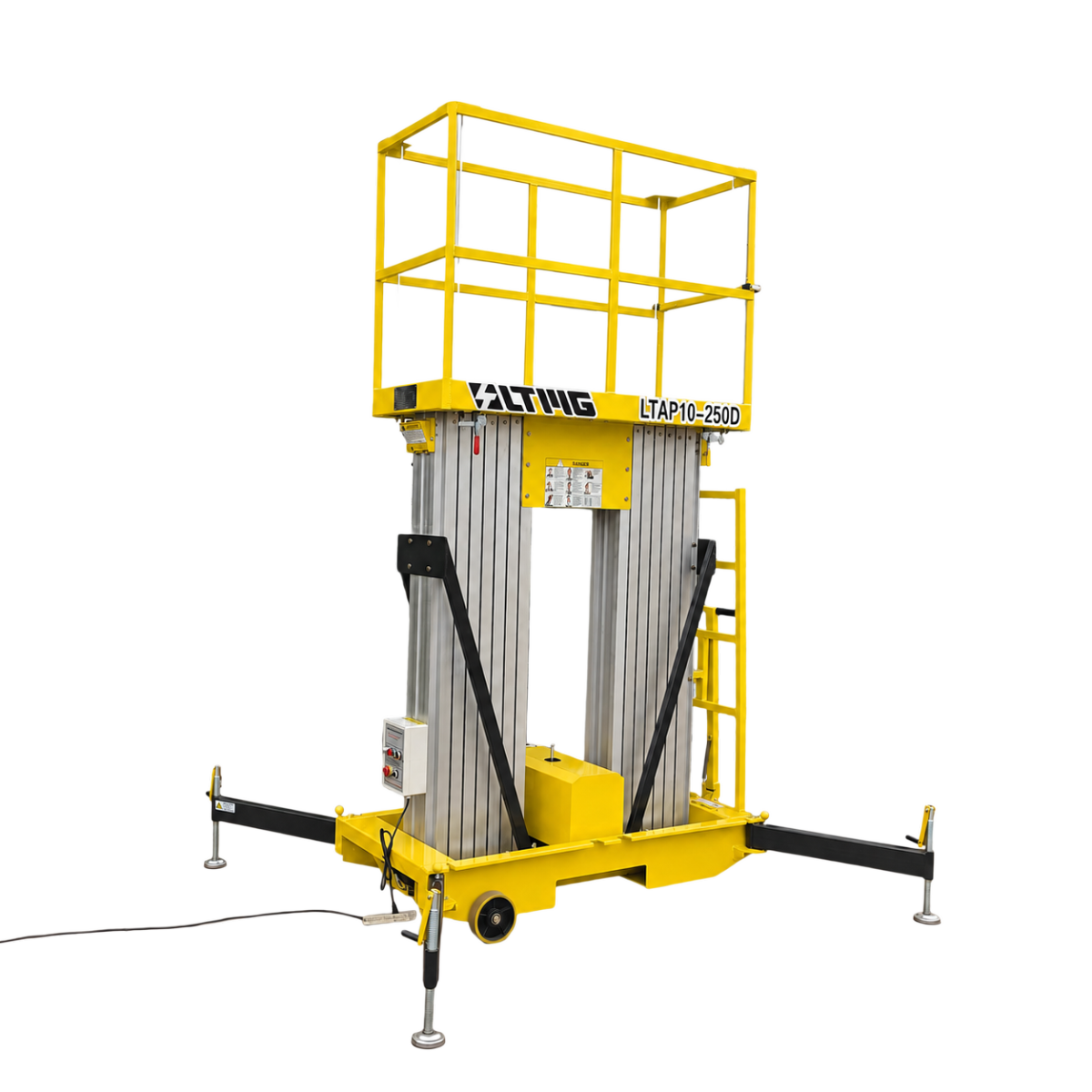

Mast lifts
LTAP10-250D
12 mMaximum Working Height
10 mMaximum Platform Height
250 kgSafe Working Load
Key Features
The aluminum alloy structure offers both strength and light weight for frequent daily use.
Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.
Technical data
型号LTAP10-250D
Maximum Working Height12 m
Maximum Platform Height10 m
Working Platform Dimensions1500×630×1100 mm
Overall Dimensions1840×850×2000 mm
Outrigger Size1954×2259 mm
Minimum Ground Clearance0.06 m
Wheelbase1.44 m
Weight690 kg
Safe Working Load250 kg
Maximum Workers2 /
Lifting Motor220/1.5/24V V/kW
Lifting Speed3-5 m/min
TiresFront 8 inches; Rear 7 inches /
Table Material40×20×1.5 /
Rectangular Tube3 mm
Cylinder40mm×2 /
Strut Materialthickness 6.5 /
ElectricalRemote Control Distribution Box /
ChassisQ235 Steel Plate Tube /
Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
