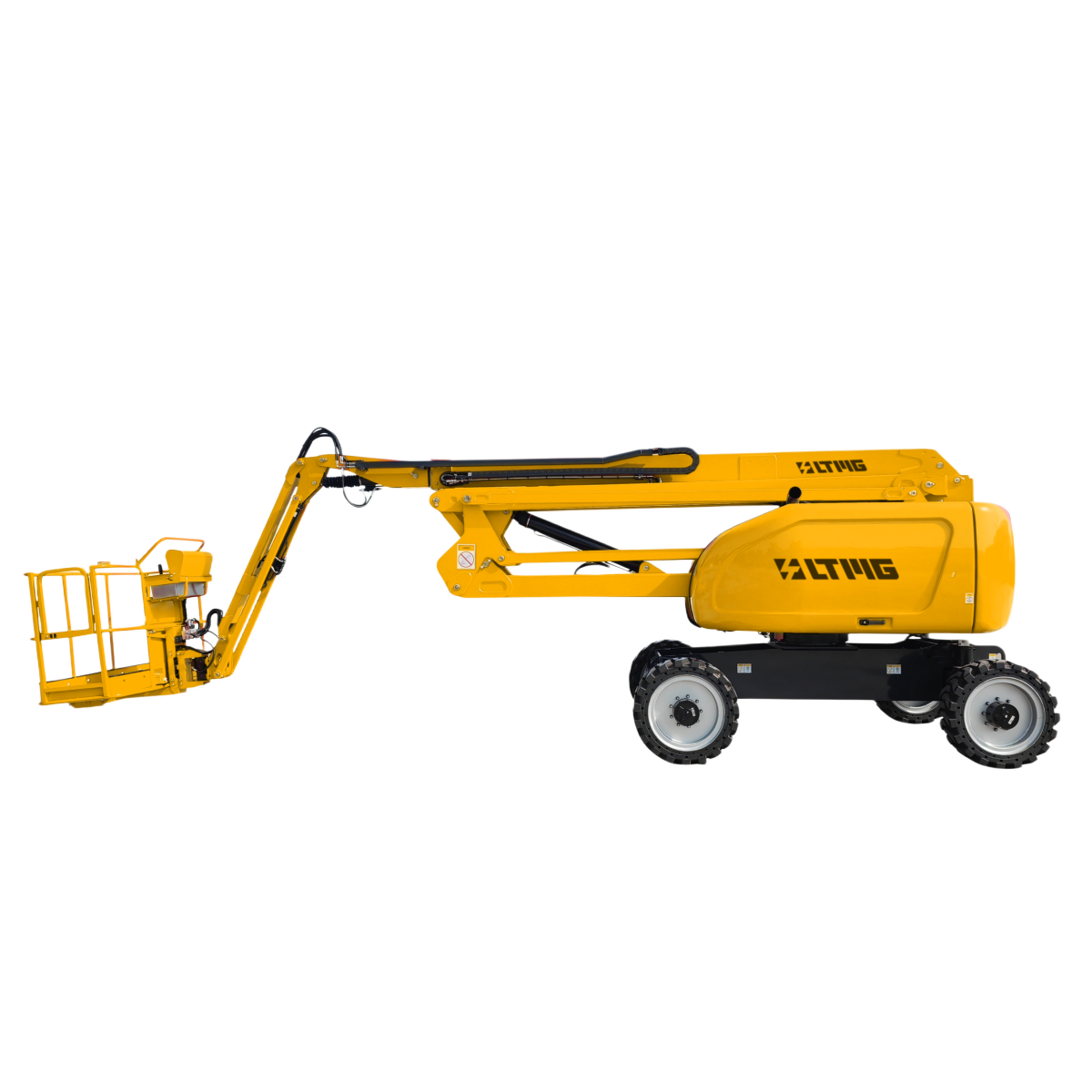

Diesel Articulated Boom Lift

LTQD2022

Name: LTQD2022 柴油曲臂高空作业车-LTQD2022
Brand: LTMG

22 mMaximum Working Height

20 mMaximum Platform Height

230 kgLoad Capacity

Request an inquiry

Key Features

Designed for outdoor aerial applications, the diesel telescopic boom lift provides the power and reliability needed for demanding jobsites.

Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.

Technical data

型号LTQD2022

Maximum Working Height22 m

Maximum Platform Height20 m

Maximum Horizontal Reach12 m

Load Capacity230 kg

Length When Stowed8.54 m

Width2.38 m

Height When Stowed2.55 m

Wheelbase2.4 m

Ground Clearance0.4 m

Platform Dimensions1.83 x 0.76 m

Inner Turning Radius2.66 m

Outer Turning Radius5.66 m

Travel Speed - Stowed2WD: 6.3; 4WD: 4.2 km/h

Travel Speed - Raised/Extended1.1 km/h

Gradeability2WD: 16.7° (30%); 4WD: 24.4° (45%) %

Tire33 x 12-20 /

Turntable Speed0-0.8 rpm

Turntable Rotation360 °

Platform LevelingAutomatic leveling /

Platform Rotation±90 °

Fuel Tank Capacity100 L

Weight2WD: 9380; 4WD: 9350 kg

System Voltage12 V

Drive and Steering4 x 4 x 2 /

EngineKubota / Yanmar /

Rated Power36 / 35.6 kW

Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
