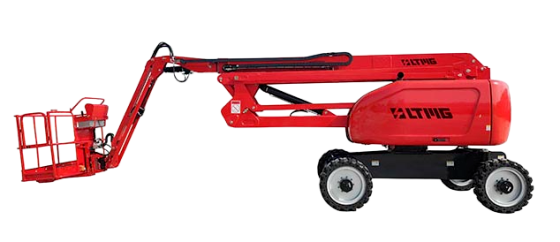

Diesel Articulated Boom Lift
LTQD2426
22 mMaximum Working Height
20 mMaximum Platform Height
230 kgLoad Carrying Capacity
Key Features
Equipped with our company’s patented weighing technology, the diesel articulated boom lift enables accurate measurement of platform loads. The weighing system is not affected by the load position on the platform, avoiding misjudgment and ensuring normal and safe operation of the machine.
Technical data
型号LTQD2426
Maximum Working Height22 m
Maximum Platform Height20 m
Maximum Horizontal Operating Range12 m
Load Carrying Capacity230 kg
Length When Stowed8.72 m
Width2.38 m
Height When Stowed2.36 m
Wheelbase2.5 m
Ground Clearance0.34 m
Platform Dimensions1.83×0.76×1.13 m
Travel Speed5 / 0.8 km/h
Turntable Rotation355° °
Platform Rotation±90° °
Drive Motor4×4kW kW
Battery48/400 Ah
Charger48/60 V/A
