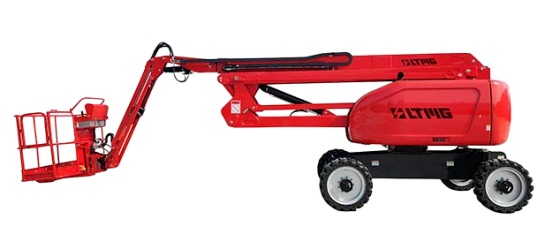

Diesel Articulated Boom Lift

LTQD2628

Name: LTQD2628 柴油曲臂高空作业车-LTQD2628
Brand: LTMG

28 mMax Working Height

26 mMax Platform Height

230 kgRated Load Capacity

Request an inquiry

Key Features

Equipped with our company’s patented weighing technology, the diesel articulated boom lift enables accurate measurement of platform loads. The weighing system is not affected by the load position on the platform, avoiding misjudgment and ensuring normal and safe operation of the machine.

Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.

Technical data

型号LTQD2628

Max Working Height28 m

Max Platform Height26 m

Max Horizontal Outreach17.28 m

Rated Load Capacity230 kg

Overall Length (Stowed)11.7 m

Overall Width2.58 m

Overall Height (Stowed)2.97 m

Wheelbase3 m

Ground Clearance (Chassis Center)0.43 m

Platform Dimensions (L×W)2.44×0.91×1.13 m

Travel Speed (Stowed)(2WD) 6.3 / (4WD) 4.2 km/h

Travel Speed (Raised/Extended)1.1 km/h

Gradeability30% (2WD) / 40% (4WD) %

Turning Radius (Inner Wheel)2.6 m

Turning Radius (Outer Wheel)6.1 m

Turntable Rotation Angle360° °

Turntable Rotation Speed0~1/3 rpm

Platform Rotation Angle90° °

Platform Leveling MethodAutomatic Leveling /

Engine Manufacturer/BrandWeichai / Cummins /

Engine Rated Power36 kW

Drive & Steering Configuration4×4×2 /

Tire Specification385/65-22.5 Solid Tire /

System Voltage12 V

Total Weight(2WD) 16800 / (4WD) 17000 kg

Fuel Tank Capacity110 L

Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
