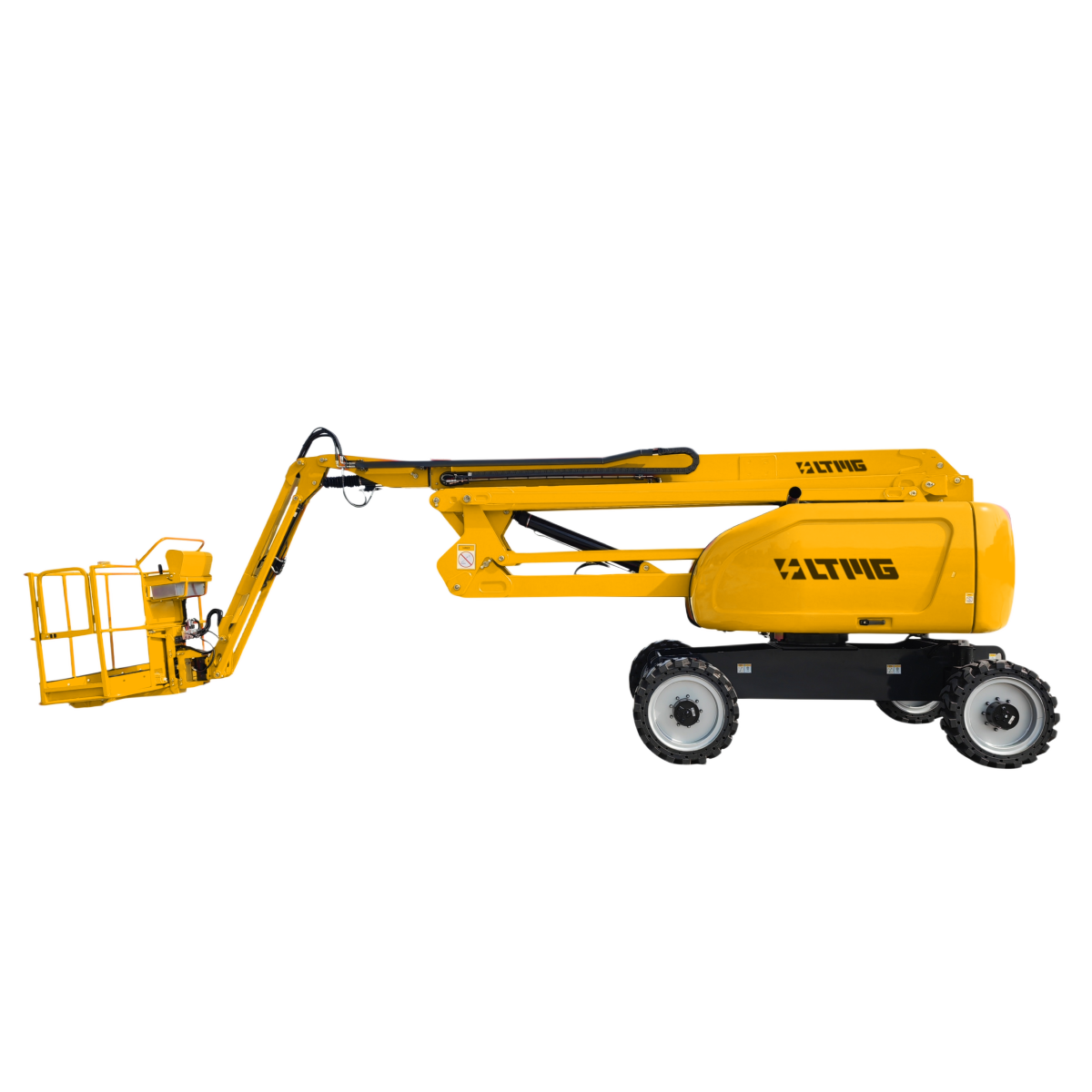

Diesel Articulated Boom Lift

LTQD3032

Name: LTQD3032 柴油曲臂高空作业车-LTQD3032
Brand: LTMG

32 mMaximum Working Height

30 mMaximum Platform Height

230 kgLoad Capacity

Request an inquiry

Key Features

The diesel-powered system delivers strong output and reliable performance, making the machine ideal for demanding outdoor aerial work tasks.

Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.

Technical data

型号LTQD3032

Maximum Working Height32 m

Maximum Platform Height30 m

Maximum Horizontal Reach19 m

Load Capacity230 kg

Length When Stowed13.86 m

Width2.58 m

Height When Stowed2.88 m

Wheelbase3.3 m

Ground Clearance0.4 m

Platform Dimensions2.44 x 0.91 m

Inner Turning Radius2.6 m

Outer Turning Radius6.1 m

Travel Speed - Stowed4.4 km/h

Travel Speed - Raised/Extended0.8 km/h

Gradeability21.8° (40%) %

Tire385/65-22.5 or optional solid tire /

Turntable Speed0-1.3 rpm

Turntable Rotation360 °

Platform LevelingAutomatic leveling /

Platform Rotation±90 °

Fuel Tank Capacity/ L

Weight19500 kg

System Voltage12 V

Drive and Steering4 x 4 x 2 /

EngineWeichai / Cummins /

Rated Power54 kW

Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
