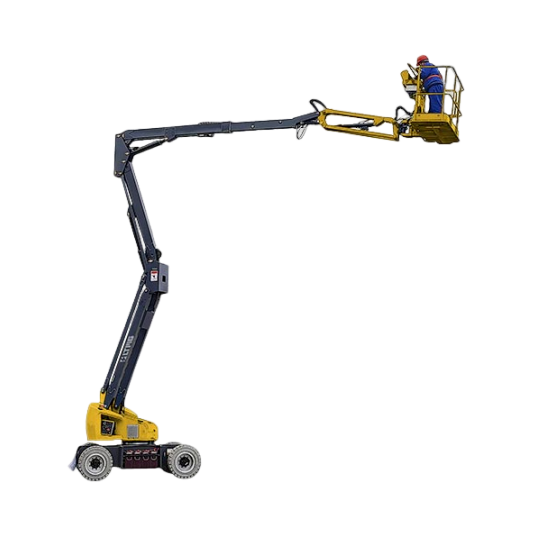

Electric Articulated Boom Lift
LTQE2022
22 mMaximum Working Height
20 mMaximum Platform Height
230 kgLoad Carrying Capacity
Key Features
Complying with the European Union EN280 standard, the boom lift has obtained CE certification, ensuring compliance with European safety requirements and reliable operation.
Technical data
型号LTQE2022
Maximum Working Height22 m
Maximum Platform Height20 m
Maximum Horizontal Operating Range12 m
Load Carrying Capacity230 kg
Length When Stowed8.72 m
Width2.38 m
Height When Stowed2.36 m
Wheelbase2.5 m
Ground Clearance0.34 m
Platform Dimensions1.83×0.76×1.13 m
Travel Speed5 / 0.8 km/h
Turntable Rotation355° °
Platform Rotation±90° °
Drive Motor4×4kW kW
Battery48/400 Ah
Charger48/60 V/A
