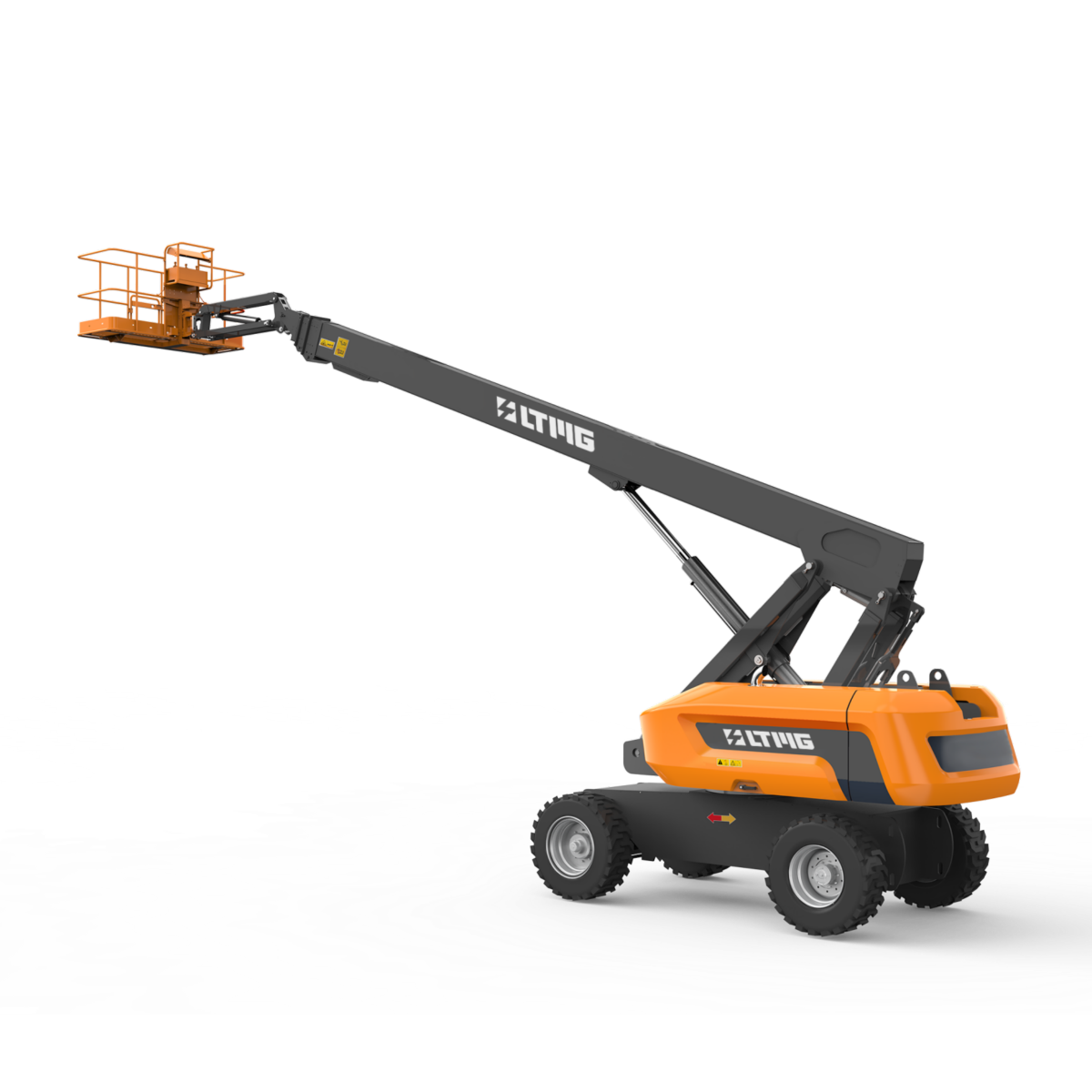

Diesel Telescopic Boom Lift
LTZD1921
21 mMaximum Working Height
19 mMaximum Platform Height
250 kgLoad Capacity
Key Features
Four-wheel drive delivers strong mobility and gradeability for slopes, gravel, muddy ground, and complex jobsite conditions.
Technical data
型号LTZD1921
Maximum Working Height21 m
Maximum Platform Height19 m
Maximum Horizontal Reach14.9 m
Load Capacity250 kg
Length When Stowed9.5 m
Width2.28 m
Height When Stowed2.65 m
Wheelbase2.44 m
Ground Clearance0.45 m
Platform Dimensions1.83 × 0.76 m
Inner Turning Radius3.42 m
Outer Turning Radius6.21 m
Travel Speed - Stowed5.1 km/h
Travel Speed - Raised/Extended1.1 km/h
Gradeability45 %
Tire36×14-20 /
Turntable Speed/ rpm
Turntable Rotation/ °
Platform Leveling/ /
Platform Rotation/ °
Fuel Tank Capacity110 L
Weight10200 kg
System Voltage/ V
Drive and Steering4WD × 2WS /
EngineYANMAR /
Rated Power/ kW
