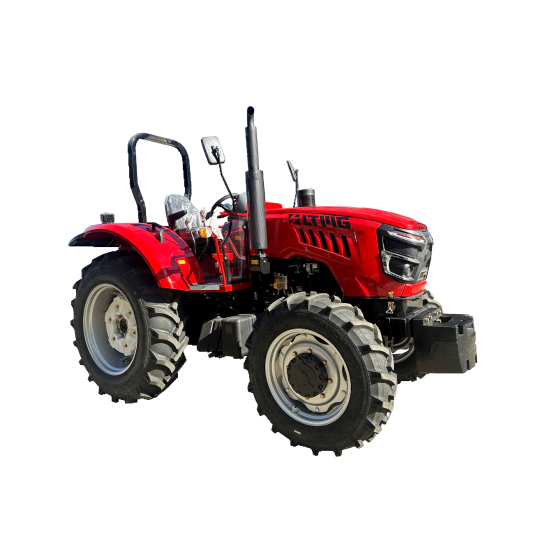

Diesel wheeled Tractor
LTD904
66.2 kWRated Power
4560 kgMinimum Operating Mass
16F+8R /Gearbox
Key Features
Equipped with a shuttle shift gear structure, it allows for quick transitions between forward and reverse with a single gear engagement.
Technical data
型号LTD904
Drive Type4 × 4 /
Rated Power66.2 kW
Overall Dimensions (L × W × H)4485 × 2100 × 3060 mm
Wheelbase2385 mm
Minimum Ground Clearance420 mm
Minimum Operating Mass4560 kg
Tread (Front / Rear)Front: 1620 (1620–1820), adjustable; Rear: 1620 (1620–1820), adjustable mm
Clutch TypeDry-type, double-acting /
EngineLR4V5P-T145-U2 /
Rated Speed2300 r/min
Gearbox16F+8R /
PTO Type8 spline, Φ38, Type I (optional 6 spline) /
PTO Rated Power≥56.3 kW
PTO Speed760/1000, 760/850, or 540/1000 r/min
Three-Point LinkageRear three-point suspension, Cat. 2 /
Hydraulic Output3-group valve /
Hydraulic Adjustment ModeForced hydraulic system, position control, floating control /
Maximum Lifting Force at Frame Center≥15.9 kN
Standard Tyre Size (Front / Rear)12.4–24 / 16.9–34 /
Optional Tyre Size I (Front / Rear)13.6–24 / 16.9–38 /
Other OptionsWarm cabin (optional), safety shelf (optional), ROPS/sunroof (optional) /
