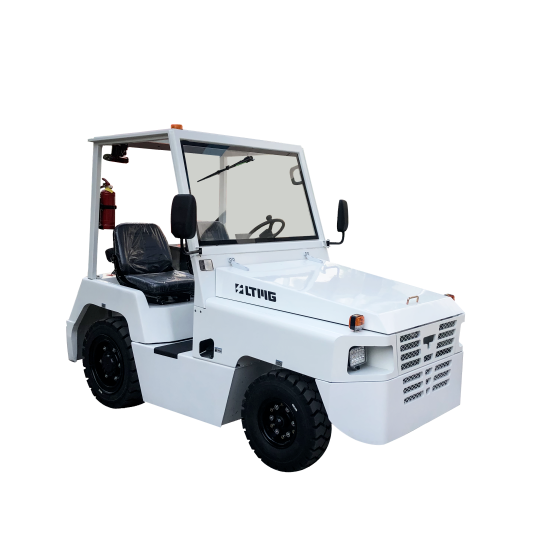

Diesel Baggage & Cargo Tow Tractor
TD20
3400 kgOperating Weight
43 kWRated Power
20 kNMaximum Drawbar Pull
Key Features
High body strength; the rectangular frame provides excellent rigidity, ensuring stability and safety for the tractor.
Technical data
型号TD20
Operating Weight3400 kg
Rated Power43 kW
Maximum Drawbar Pull20 kN
Travel SpeedForward: 30; Reverse: 14 km/h
Minimum Turning Radius2950 mm
Towing Coupler Height304.8/405 mm
Maximum Towing Capacity (Single Trailer)26000 kg
Maximum Towing Capacity (Trailer Train)39000 kg
Maximum Gradeability (No Load)38 %
Front Axle Load1190 kg
Rear Axle Load2210 kg
Engine ModelYanmar 4TNE98 /
Engine Displacement3319 cm³
Rated Engine Speed2300 rpm
Maximum Torque196.3 N·m
Maximum Torque Speed1700 rpm
Transmission ModelOkamura 340 /
Transmission TypeAutomatic 2-speed /
First Forward Gear Ratio2.55 /
Second Forward Gear Ratio1.241 /
Reverse Gear Ratio2.55 /
Front Tire6.50-10PR /
Rear Tire28×9-15PR /
