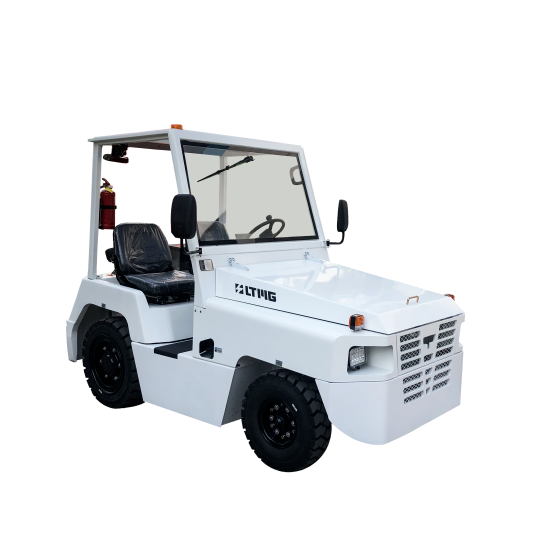

Diesel Baggage & Cargo Tow Tractor
TD20
3400 kgOperating Weight
43 kWRated Power
20 kNMaximum Drawbar Pull
Key Features
High body strength; the rectangular frame provides excellent rigidity, ensuring stability and safety for the tractor.
Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.
Technical data
ModelTD20
Operating Weight3400 kg
Rated Power43 kW
Maximum Drawbar Pull20 kN
Travel SpeedForward: 30; Reverse: 14 km/h
Minimum Turning Radius2950 mm
Towing Coupler Height304.8/405 mm
Maximum Towing Capacity (Single Trailer)26000 kg
Maximum Towing Capacity (Trailer Train)39000 kg
Maximum Gradeability (No Load)38 %
Front Axle Load1190 kg
Rear Axle Load2210 kg
Engine ModelYanmar 4TNE98 /
Engine Displacement3319 cm³
Rated Engine Speed2300 rpm
Maximum Torque196.3 N·m
Maximum Torque Speed1700 rpm
Transmission ModelOkamura 340 /
Transmission TypeAutomatic 2-speed /
First Forward Gear Ratio2.55 /
Second Forward Gear Ratio1.241 /
Reverse Gear Ratio2.55 /
Front Tire6.50-10PR /
Rear Tire28×9-15PR /
Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
