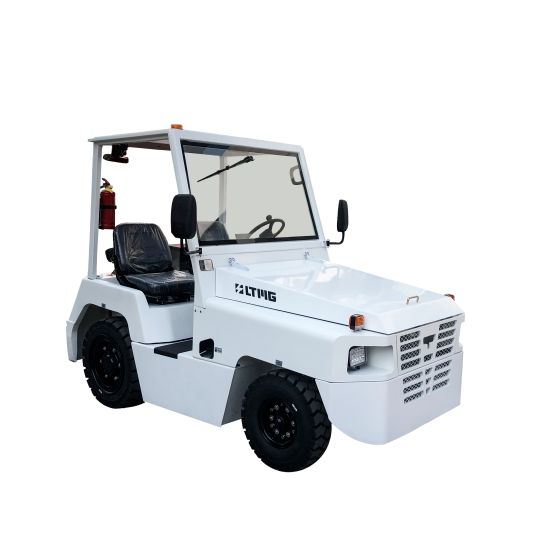

Diesel Baggage & Cargo Tow Tractor
TD30
3950 kgOperating Weight
57 kWRated Power
30 kNMaximum Drawbar Pull
Key Features
High-strength body with a rigid rectangular frame structure for better stability and safety.
Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.
Technical data
ModelTD30
Operating Weight3950 kg
Rated Power57 kW
Maximum Drawbar Pull30 kN
Travel SpeedUnloaded: 25; 10 t load: 16 km/h
Minimum Turning Radius2950 mm
Towing Coupler Height304.8/405 mm
Maximum Towing Capacity (Single Trailer)32000 kg
Maximum Towing Capacity (Trailer Train)49000 kg
Maximum Gradeability (No Load)45 %
Front Axle Load1220 kg
Rear Axle Load2730 kg
Engine ModelISUZU JX493G3 /
Engine Displacement2771 cm³
Rated Engine Speed2600 rpm
Maximum Torque172 N·m
Maximum Torque Speed1700 rpm
Transmission ModelOkamura 300 /
Transmission TypeAutomatic 2-speed /
First Forward Gear Ratio2.55 /
Second Forward Gear Ratio1.241 /
Reverse Gear Ratio2.55 /
Front Tire6.50-10PR /
Rear Tire28×9-15PR /
Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
