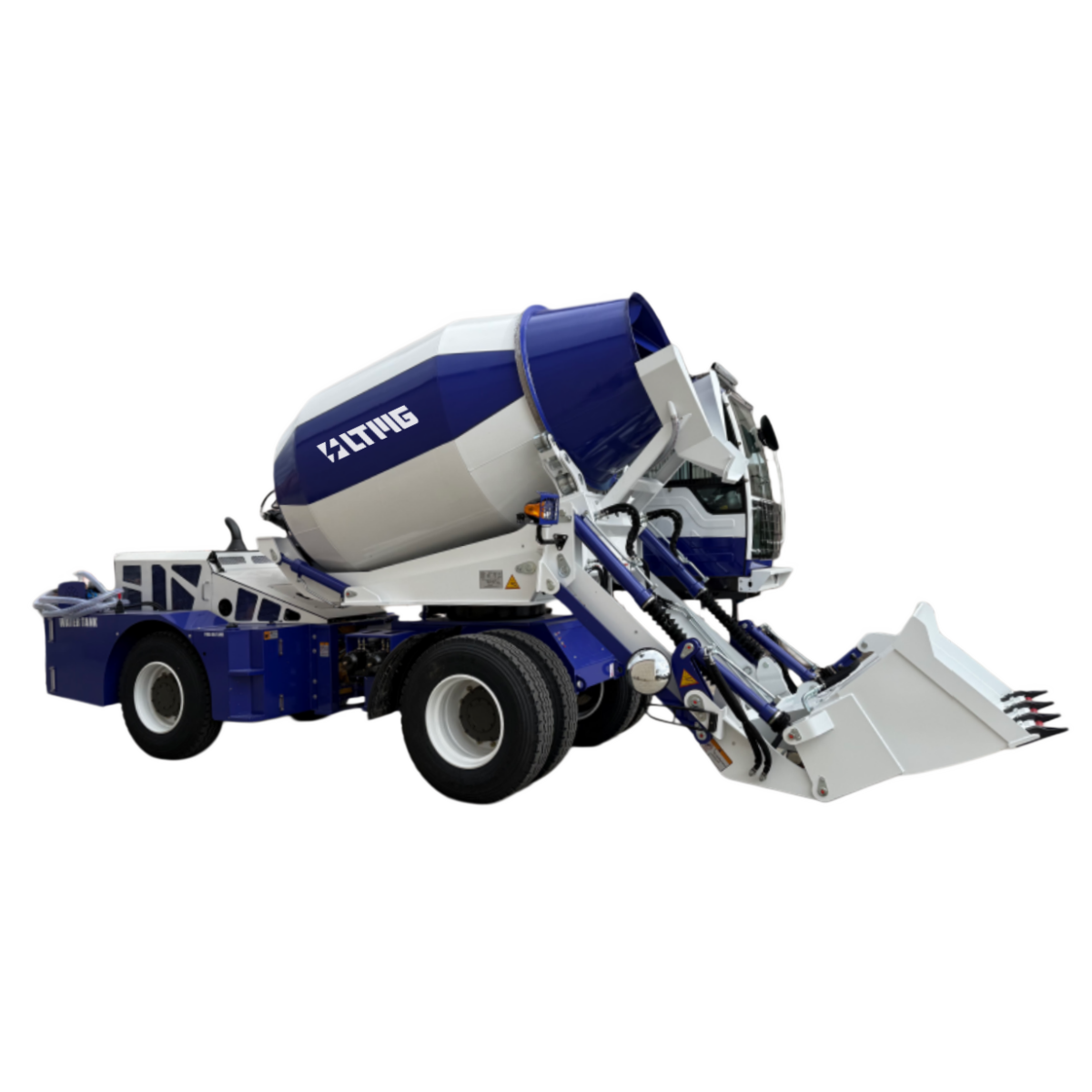

Diesel Self-Loading Concrete Mixer
LTM40A
4 m³Output per Batch
18 m³/hHourly Output
0.6 m³Bucket Capacity
Key Features
The leading automatic feeding and mixing system, combined with an electronic metering system, ensures precise automatic material weighing, mixing, and discharging, guaranteeing high efficiency and consistency while minimizing human error.
Technical data
型号LTM40A
Output per Batch4 m³
Batches per HourUp to 4.5 batch/h
Hourly Output18 m³/h
Overall Dimensions7600 × 2950 × 3400 mm
Wheelbase3000 mm
Operating Weight9000 kg
EngineYuchai Power YCD4J22T 125, diesel, water-cooled, 4-cylinder /
Engine Speed2600 rpm
Rated Power91 kW
Steering TypeHydraulic articulated steering /
High Speed0-40 km/h
Low Speed0-25 km/h
Tire12R-22.5 steel wire high pressure vacuum tire /
Bucket Capacity0.6 m³
Bucket DischargeHydraulic gate /
Operation ControlTwo hydraulic pilot joysticks control the scoop, upper arm, 270° turn, lift tank /
Hydraulic SystemOpen oil inlet, axial piston motor; two gear pumps to participate in the work /
Water Tank Capacity1 × 800 L
Diesel Tank Capacity135 L
Hydraulic Oil Tank Capacity135 L
Power System Voltage24 V
Climbing Capacity40 °
Turning Radius3000 mm
OtherQ345 manganese steel frame, excavator luxury cab, driving video, cement bucket, air conditioning /
