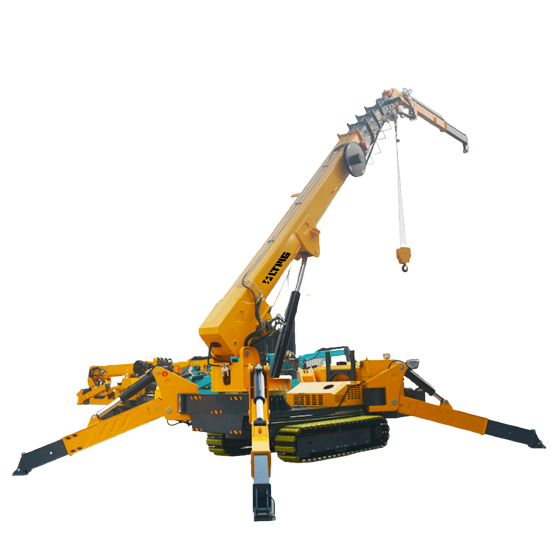

Spider Crane
SC160
24 mMaximum Operating Radius
29 mMaximum Ground Lift
16500 kgSelf-Weight
Key Features
The spider crane is a new type of aerial work lifting equipment specially built for high-altitude jobs. Unlike large hydraulic cranes that rely on transport trucks, it can travel freely on construction sites by itself. It is small enough to access tight indoor areas to carry out lifting work, greatly improving construction convenience. Its crawler design delivers stable performance, strong load capacity, reliable anti-slip ability, and low requirements for ground conditions.
Technical data
型号SC160
Maximum Operating Radius24 m
Maximum Ground Lift29 m
Overall Dimensions6.6 × 2 × 2.48 m
Self-Weight16500 kg
Hook Lifting Speed10 (4 ropes) m/min
Wire Rope SpecificationΦ12 × 140 mm × m
Boom Configuration5 m × 6-section lifting arm (Support customization) /
Telescopic Boom Length6.5-25 m
Boom Extension Length12.3 m
Boom Extension Time40 s
Maximum Boom Angle78 °
Boom Luffing Time17 s
Rotation Angle0-360 (continuous) °
Rotation Time42 s
Outrigger Deployment MethodManual screw extension + hydraulic retraction + automatic support /
Maximum Outrigger Spread8100 (length) × 5600 (rear) × 6700 (front) mm
Travel DriveHydraulic motor drive /
Travel Speed0-2.5 km/h
Gradeability25 / 36 ° / %
Engine ManufacturerYuchai /
Engine Start MethodElectric start /
Fuel TypeDiesel /
Fuel Tank Capacity8 L
Operation ModeManual boom/outrigger operation and manual travel; remote control optional /
Operational CharacteristicsManual operation; remote operation optional /
