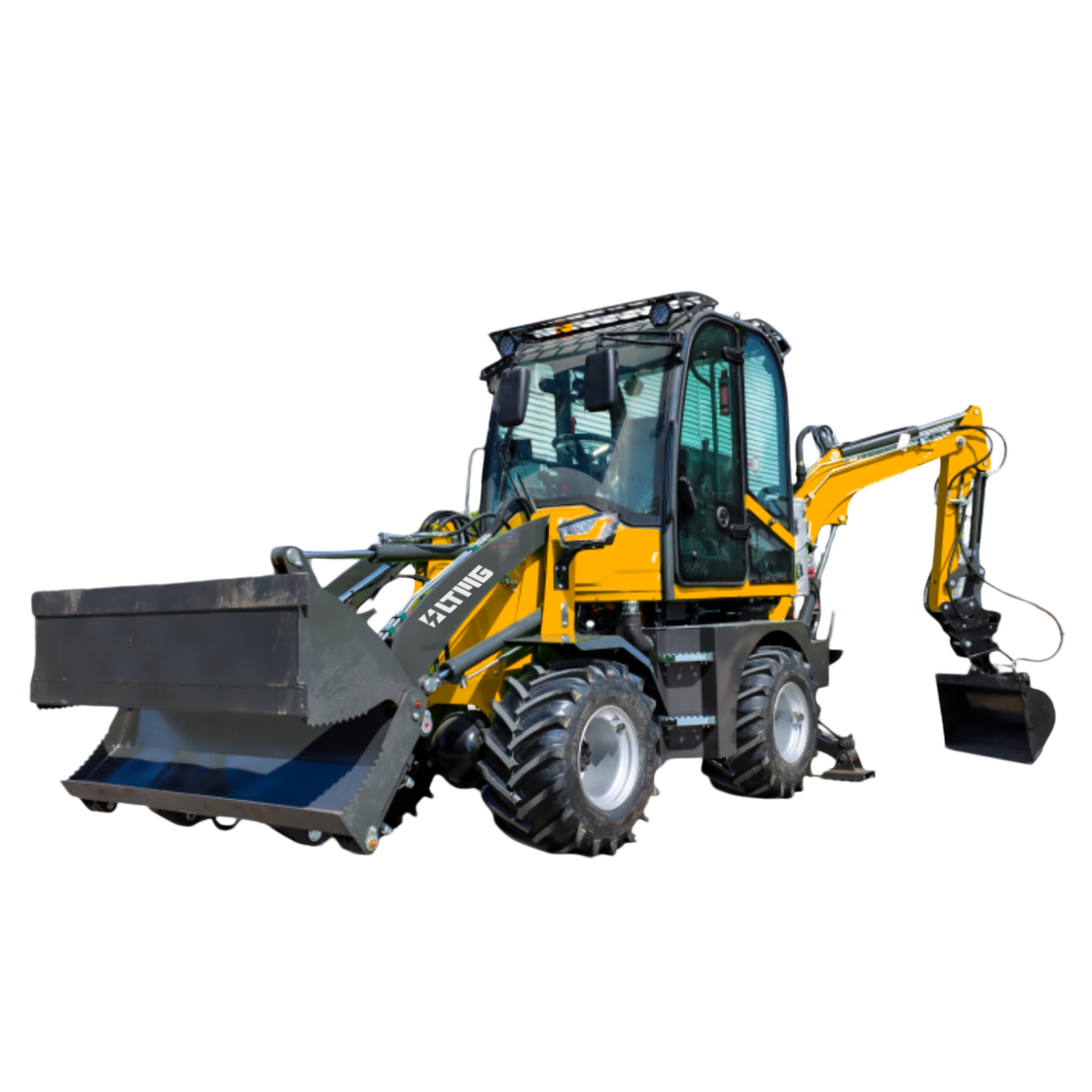

Backhoe Loader
WZ15-20
2800 kgOperating Weight
0.6 m³Bucket Capacity
0.3 m³Backhoe Capacity
Key Features
The air filter is mounted on the side of the vehicle body outside the cab, saving interior space and optimizing the cab layout. Its external location also reduces the accumulation of dust, lint, food residue, and other fine debris.
Technical data
型号WZ15-20
Wheelbase1600 mm
Operating Weight2800 kg
Bucket Width1580 mm
Bucket Capacity0.6 m³
Backhoe Bucket Width420 mm
Backhoe Capacity0.3 m³
Maximum Dumping Height2400 mm
Maximum Digging Depth2300 mm
Backhoe Swing Angle180 °
Engine ModelYN25GB /
Engine TypeIn-line /
Rated Power37 kW
Rated Speed2400 r/min
Displacement2.5 L
Transmission TypePowershift /
Axle ManufacturerCheng'an Axle /
Front Axle Model50 /
Rear Axle Model50 /
Tire Size12-16.5 / 12-16.5 /
Service BrakePneumatic-hydraulic disc brake /
Parking BrakeManual /
Loader Hydraulic Pressure160 bar
Backhoe Hydraulic Pressure160 bar
Hydraulic Tank Capacity47.5 L
Fuel Tank Capacity47.5 L
