Key Features
Adopting domestic big-brand tyres, wear-resistant and reliable, suitable for a variety of harsh working conditions and efficient operation.
Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.
Technical data

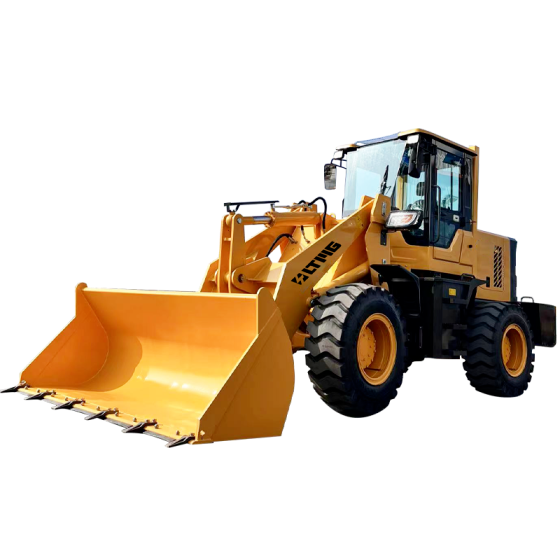

ModelLT928
Operating Weight7800 kg
Rated Load2800 kg
Bucket Capacity1.5 m³
Overall Dimensions7000×2300×3060 mm
Rated Power92 kW
EngineWeichai /
Tire Size17.5-25 /
Bucket Width2300 mm
Wheelbase2750 mm
Wheel Tread1650 mm
Max. Dumping Height3800 mm
Max. Dumping Distance1050 mm
Max. Lifting Height5050 mm
Torque Converter TypeMultitronic /
Gearbox Model315 /
Gear Shift4 forward, 4 reverse /
Max. Speed36 (original: 36Km) km/h
Cylinder Count6 /
Wheel-side Reduction Type28 Wheelside reduction axle /
Service BrakeDisc brake /
Parking BrakeSoft shaft brake /
Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
