Key Features
Built with a reinforced heavy-duty frame, offering strong load-bearing capacity and enhanced structural strength to adapt to demanding heavy-duty working conditions.
Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.
Technical data

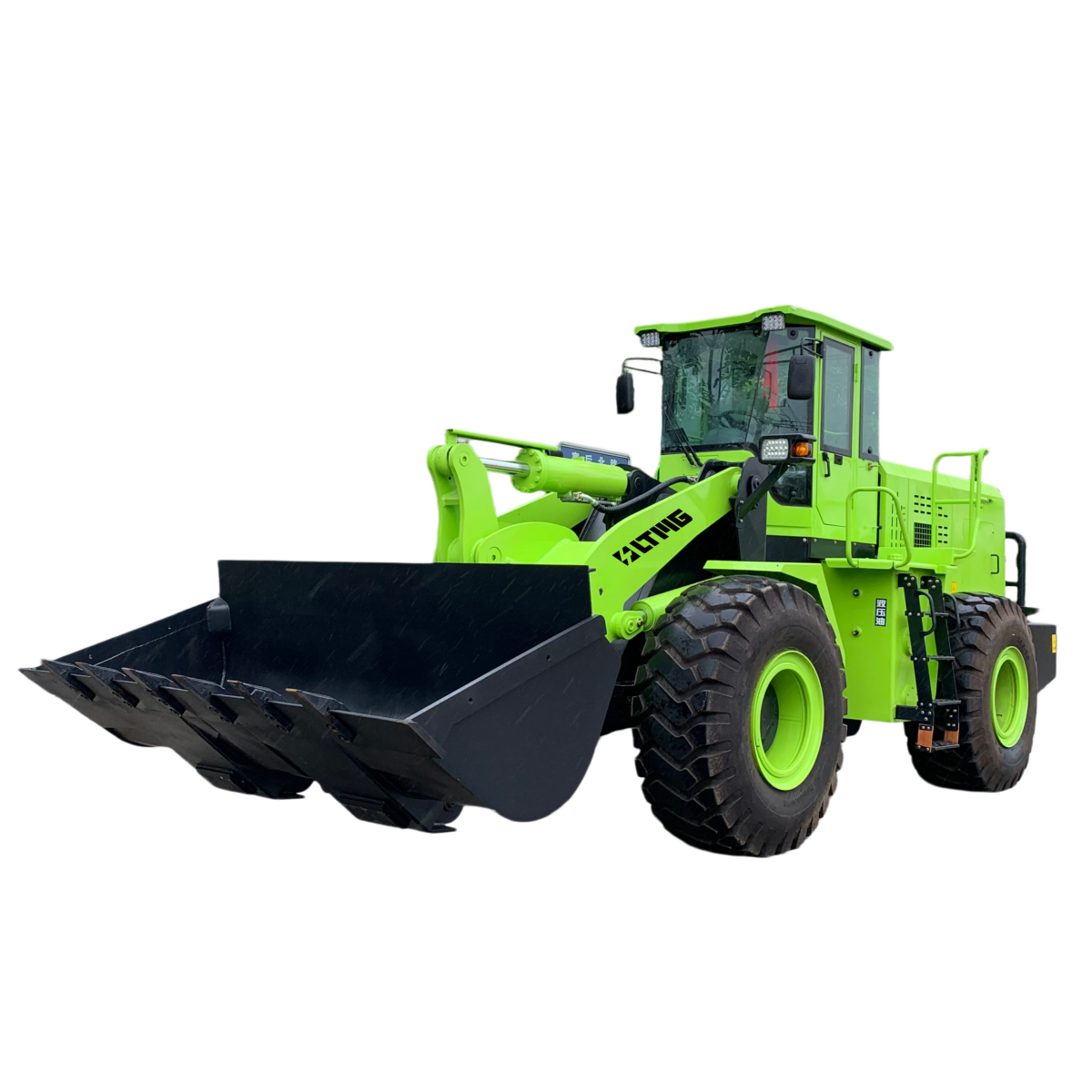

ModelLT960EV
Operating Weight19500 kg
Rated Load6000 kg
Bucket Capacity4.2 m³
Overall Dimensions8660*2960*3520 mm
Forward Gear I/II Speed18/36 km/h
Reverse Gear I/II Speed18/36 km/h
Drive AxleDry Bridge /
Wheelbase3350 mm
Wheel Tread2250 mm
Steering Angle40 °
Max. Gradeability28 °
Max. Tractive Force170 kN
Max. Breakout Force174 kN
Max. Dumping Height3600 mm
Max. Dumping Distance1250 mm
Rated Power290 kW
System VoltageDC24 V
Battery Life4-5 h
Charging Time60（300Kw Charging Pile） min
Battery TypeLithium iron phosphate /
Battery Rated Capacity618/456 V/Ah
Driving Motor Power100-180 kW
Lifting Motor Power90-130 kW
Working Hydraulic System TypeDouble Pump Confluence /
Hydraulic Operation MethodPilot Control /
Tire Size26.5-25 /
Service BrakeGas cap oil, clamp disc type /
Hand BrakePneumatic control, clamp type /
Air Conditioning SystemElectric, heating and cooling /
Dumping Time3.5 s
Lifting Time5.8 s
Total Cycle Time9.7 s
Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
