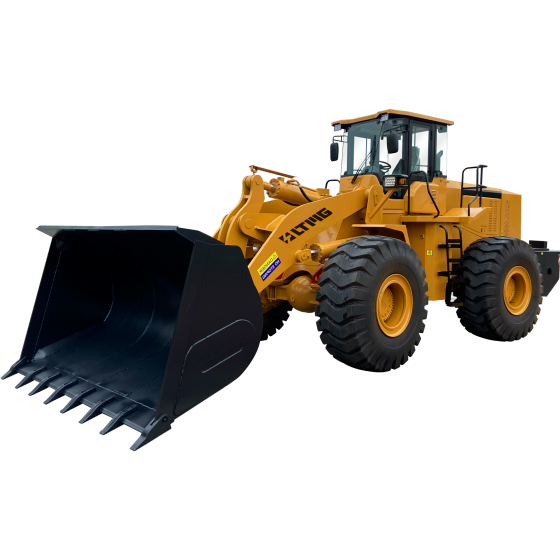

Loader
LT968
19500 kgOperating Weight
6000 kgRated Load
2026-03-04 0:00:00 m³Bucket Capacity
Key Features
Reinforced drive axles with a safety factor twice as high, delivering stronger and more reliable load-carrying capacity.
Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.
Technical data
ModelLT968
Operating Weight19500 kg
Rated Load6000 kg
Bucket Capacity2026-03-04 0:00:00 m³
Overall Dimensions8250x3210x3640 mm
Rated Power175/2200 kW/r/min
EngineWeichai /
Tire Size26.5-25 /
Bucket Width3160 mm
Wheelbase3100 mm
Max. Dumping Height3600 mm
Max. Dumping Distance1300 mm
Min. Turning Radius7134 mm
Steering Angle35±1 °
Max. Gradeability28 °
Max. Breakout Force175 kN
Max. Torque1000 N·m
Lifting Time≤6.5 s
Hydraulic Cycle Time≤10.5 s
Forward Gear II Speed38 km/h
Reverse Gear I Speed16 km/h
1Forward Gear Ⅰ11.5 km/h
Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
