Key Features
Built with a reinforced heavy-duty frame, offering strong load-bearing capacity and enhanced structural strength to adapt to demanding heavy-duty working conditions.
Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.
Technical data

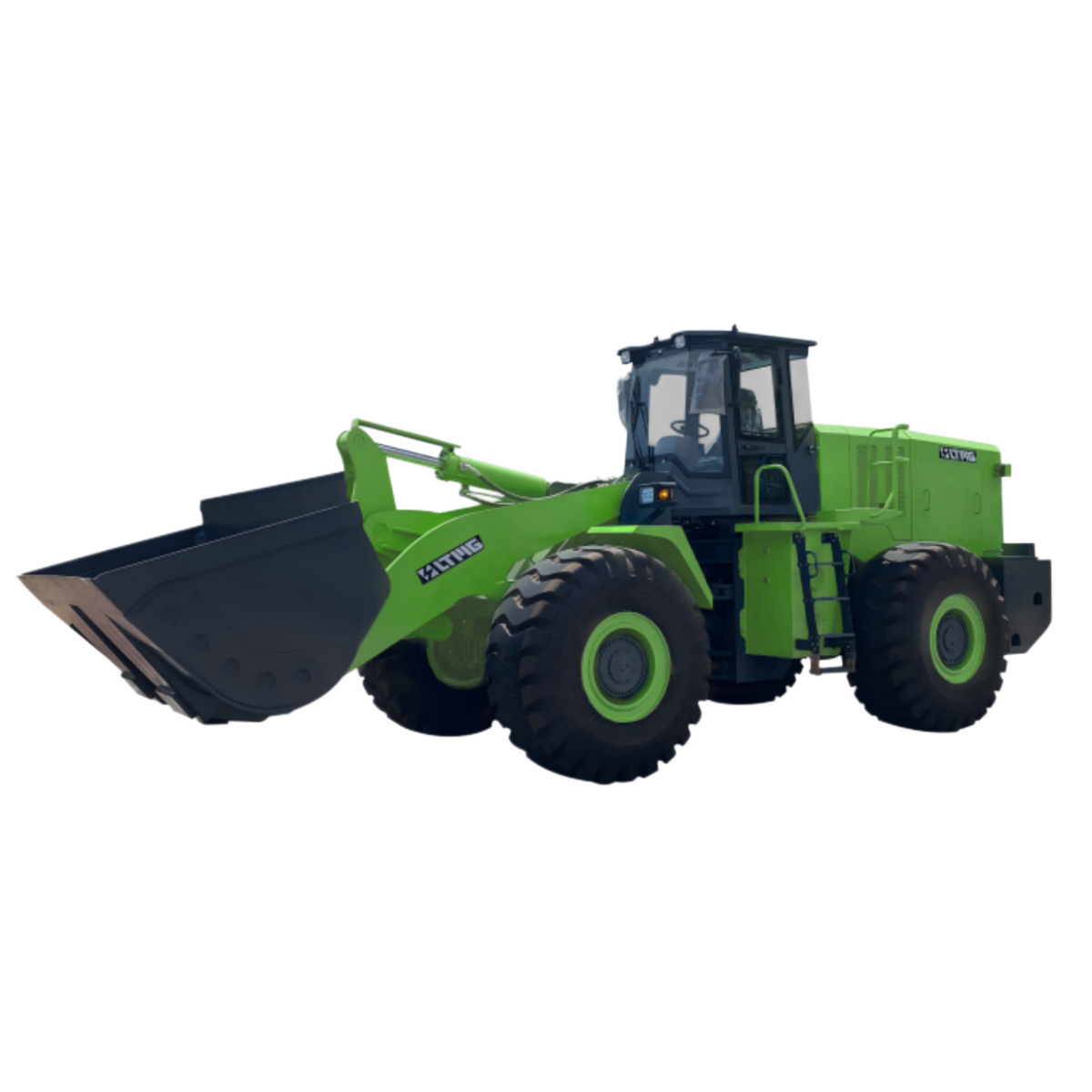

ModelLT970EV
Operating Weight25000 kg
Bucket Capacity4.2-4.5 m³
Rated Load7000 kg
Overall Dimensions9782x3007x3587 mm
Forward Gear I/II Speed18/36 km/h
Reverse Gear I/II Speed18/36 km/h
Wheelbase3700 mm
Wheel Tread2300 mm
Steering Angle40 °
Max. Gradeability28 °
Max. Tractive Force195 kN
Max. Breakout Force210 kN
Max. Dumping Height3752 mm
Max. Dumping Distance1479 mm
Rated Power510 kW
System VoltageDC-24 V
Battery Life5-7 h
Charging Time60 min
Battery TypeLithium battery /
Battery Rated Capacity608 Ah
Battery Nominal Voltage576 V
Battery Energy350 kWh
Working Hydraulic System TypeDouble pump confluence /
Hydraulic Operation MethodPilot control /
Tire Size26.5-25 /
Service BrakeAir-jack oil, clamp disc type /
Hand BrakePneumatic control, clamp disc type /
Air Conditioning SystemElectric, heating and cooling /
Dumping Time3.5 s
Lifting Time5.8 s
Total Cycle Time9.7 s
Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
