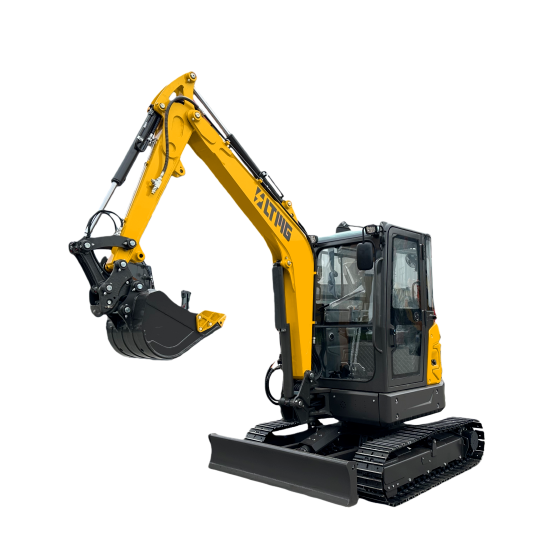

Diesel Tracked Excavator
LTE35
3810 kgOperating Weight
18.5KW/2200rpm kWRated Power
0.12 m³Bucket Capacity
Key Features
Engineered for seamless, fluid movement; the compact, heavy-duty chassis ensures outstanding stability and load-bearing performance across diverse and challenging job sites.
Technical data
型号LTE35
Operating Weight3810 kg
Engine ModelKubota D1703 /
Rated Power18.5KW/2200rpm kW
Bucket Capacity0.12 m³
System / Working Pressure22.5 MPa
Swing Speed0-11 rpm
Traveling / Walking Speed2.4/4.4 km/h
Climbing Ability58 °
Max. Excavation Height4800 mm
Max. Unloading Height3406 mm
Max. Excavation Depth3208 mm
Max. Digging Distance5480 mm
Min. Turning Radius- mm
Overall Length4915 mm
Overall Width1720 mm
Overall Height2525 mm
Min. Ground Clearance395 mm
Track Ground Length1670 mm
Track Width300 mm
Bucket Width530 mm
Max. Digging Force30.4 Kn
Ground Pressure32 kPa
Recommended products
Diesel Tracked Excavator
LTE40
- Engine Model
- Kubota D1703 /
- Rated Power
- 18.5/2200 kW/r/min
- Bucket Capacity
- 0.12 m³
Diesel Tracked Excavator
LTE230
- Operating Weight
- 23000 kg
- Rated Power
- 124KW/2050rpm kW
- Bucket Capacity
- 1.1 m³
Diesel Tracked Excavator
LTE15
- Operating Weight
- 1400 kg
- Rated Power
- 10.2/2500 kW/r/min
- Bucket Capacity
- 0.025 m³
Diesel Tracked Excavator

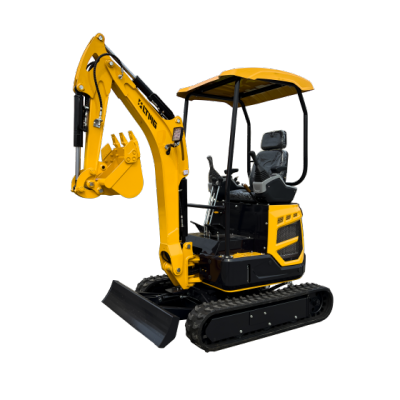

LTE18
