Key Features
High-speed, heavy-duty engine with high torque and rapid power response. Specially tuned power transmission delivers strong and stable power output.
Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.
Technical data

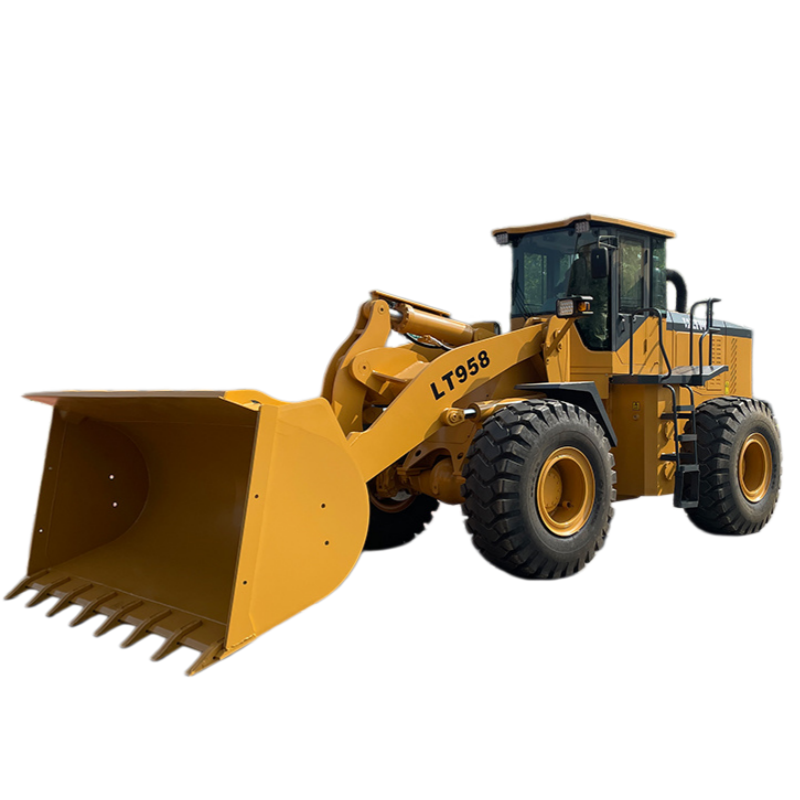

ModelLT958
Operating Weight17400 kg
Rated Load5000 kg
Bucket Capacity3 m³
Overall Dimensions7970x3000x3540 mm
Rated Power162/2200 kW/r/min
EngineWeichai/Cummins /
Tire Size23.5-25 /
Bucket Width3000 mm
Wheelbase3200 mm
Wheel Tread2280 mm
Max. Dumping Height3400 mm
Max. Dumping Distance1200 mm
Turning Radius7240 mm
Steering Angle35±1 °
Max. Gradeability28 °
Max. Breakout Force147 kN
Max. Torque745.3 N·m
Lifting Time≤6.8 s
Hydraulic Cycle Time≤12.55 s
Forward Gear I Speed11.5 km/h
Forward Gear II Speed38 km/h
Reverse Gear I Speed16 km/h
Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
