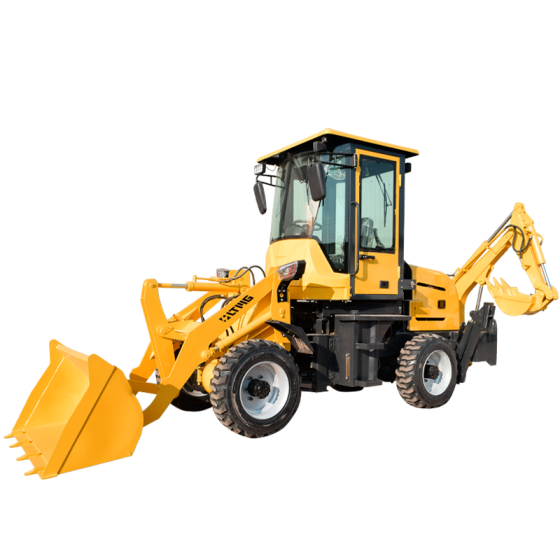

Backhoe Loader
WZ08-12
2380 kgOperating Weight
0.4 m³Bucket Capacity
0.06 m³Backhoe Capacity
Key Features
Famous brand turbocharged engine, high efficiency, energy saving, low noise and strong power.
Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.
Technical data
ModelWZ08-12
Max. Loading Lifting Height3000 mm
EngineYunnei 490 /
Rated Power37 kW
Travel Speed20 km/h
Tire Size825-16 /
Bucket Width1300 mm
System Pressure16 MPa
Max. Climbing Gradient25 °
Max. Digging Depth1500 mm
Operating Weight2380 kg
Bucket Capacity0.4 m³
Dumping Height2200 mm
Variable Speed TypeHydraulic variable speed /
Drive TypeFour-wheel drive /
Hydraulic Tank20 L
Variable Speed Type300 mm
Max. Digging Force25 kN
Max. Digging Height2600 mm
Rotary Angle of Excavator180 °
Digging Bucket Width350 mm
Fuel Tank20 L
Max. Digging Radius2000 mm
Max. Digging Dumping Height1500 mm
Backhoe Capacity0.06 m³
Rear Wheel Pressure250 kPa
Front Wheel Pressure250 kPa
Turning Radius3000 mm
Overall Dimensions5100*1358*2580 mm
Dumping Distance800 mm
Wheelbase1910 mm
Wheel Track1100 mm
Min. Ground Clearance250 mm
Cylinders Inside Diameter4-90 /
Rated Speed2400 r/min
Gear ShiftF2/R2 /
Steering Angle33 °
Forward Shovel Action Time12 s
Max. Breakout Force28 kN
Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
