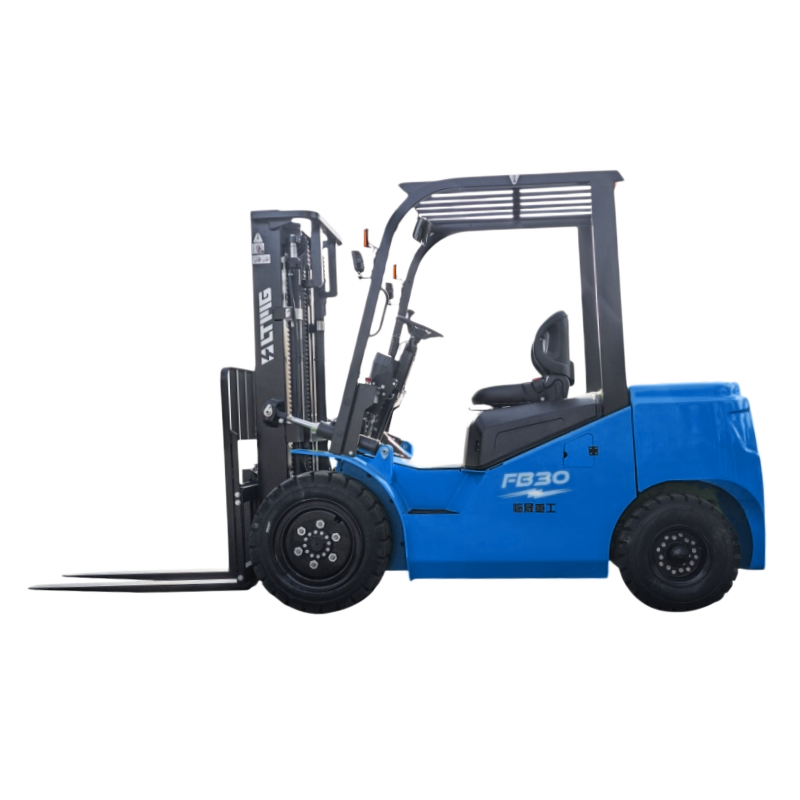

Electric Forklift
FB30(Li-ion)
3000 kgRated Capacity
500 mmLoad Center
3000 mmLift Height
Key Features
Energy-efficient LED lighting enhances performance and lifespan.
Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.
Technical data
型号FB30(Li-ion)
Power TypeElectric -
Rated Capacity3000 kg
Load Center500 mm
Lift Height3000 mm
Fork Size1070×122×45 mm
Mast Tilt Angle (F/R)46185 Deg
Turning Radius2500 mm
Ground Clearance130 mm
Front Overhang475 mm
Max. Gradeability20/20 %
Wheel Base1750 mm
Overall Weight4250/4050 kg
Total Length without Fork2695 mm
Overall/Total Width1230 mm
Mast Lowered Height2070 mm
Mast Extended Height4230 mm
Overhead Guard Height2145 mm
Max Travel Speed (Full load/No load)15/16 km/h
Max Lift/Lifting Speed (Full load/No load)320/380 mm/s
Front Tyres28x9-15-14PR -
Rear Tyres6.50-10-10PR -
Battery76.8/202 V/Ah
Voltage Plateau80 V
Operation TypeSeat -
Rear Overhang470 mm
Axle Load (Full Load, Front/Rear)6570/680 kg
Axle Load (No Load, Front/Rear)1880/2370 kg
Tire TypePneumatic tire -
Number of Wheels (x=Drive Wheels)2x/2 -
Front Track Width1000 mm
Rear Track Width970 mm
Free Lift Height135 mm
Max. Height During Operation4230 mm
Outer Distance Between Forks (Min/Max)250-1085 mm
Mast Ground Clearance (No Load)115 mm
Lowering Speed (Full Load/No load)450/410 mm/s
Max. Traction16500 N
Service BrakingHydraulic -
Parking BrakeMechanical -
Rated Power of Traction Motor (S2 60min)10AC kW
Rated Power of Oil Pump Motor (S3 15%)16AC kW
Motor Type / Protection Levelac asynchronous\IP54 -
Battery Typelithium iron phosphate battery -
Standard Battery Weight200 kg
Battery Heating Form / Protection LevelLow temperature heating\IP54 -
MCU Motor Controller TypeMOSFET/AC -
MCU Motor Controller ManufacturerJIACHEN -
MCU Motor Controller ModelACM III 80C350 -
Hydraulic System Working Pressure18.5 Mpa
Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
