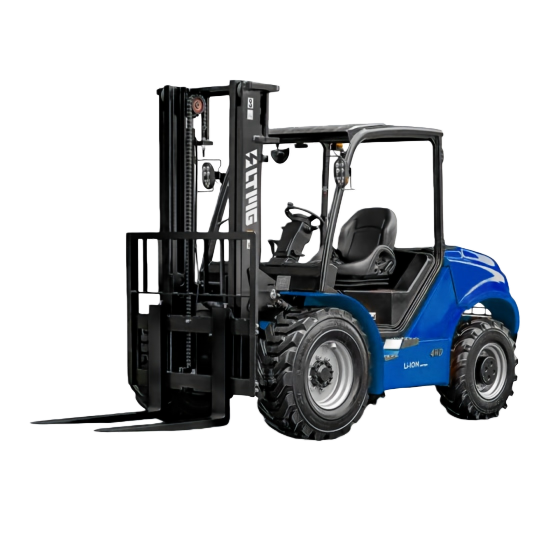

Electric Rough Terrain Forklift
FBR30-4WD
3000 kgRated Capacity
500 mmLoad Center
3000 mmLift Height
Key Features
The efficient high-torque permanent magnet synchronous motor and the high speed ratio speed reducer offer power performance and handling performance rival that of rough terrain internal combustion forklifts.
Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.
Technical data
型号FBR30-4WD
Power TypeElectric —
Rated Capacity3000 kg
Load Center500 mm
Lift Height3000 mm
Fork Size50×122×1220 mm
Mast Tilt Angle (F/R)10/12 Deg
Turning Radius3300 mm
Ground Clearance255 mm
Front Overhang600 mm
Max. Gradeability55 %
Wheelbase1880 mm
Overall Weight5340 kg
Total Length without Fork3140 mm
Overall Width1599 mm
Mast Lowered Height2350 mm
Mast Extended Height4142 mm
Overhead Guard Height2200 mm
Max Travel Speed24/26 (laden/unladen) km/h
Max Lift/Lifting Speed0.43/0.51 (laden/unladen) m/s
Front TyresPneumatic / 14-17.5-14PR —
Rear Tyres$10.0/75-15.3-12PR$ —
Battery317/150 V/Ah
Engine Power30/15AC kW
Manufacturer's Type DesignationFBR30-4W —
Operator TypeSeated —
Axle Loading (Laden Front/Rear)7200/1140 kg
Axle Loading (Unladen Front/Rear)2340/3000 kg
Wheels (Number Front/Rear)2×/2× —
Tread (Front)1250 mm
Tread (Rear)1190 mm
Free Lift150 mm
Distance Between Fork-Arms290-1150 mm
Ground Clearance (Centre of Wheelbase)290 mm
Aisle Width (Pallets $1000\times1200$ Crossways)5100 mm
Aisle Width (Pallets $800\times1200$ Lengthways)5300 mm
Lowering Speed0.5/0.45 (laden/unladen) m/s
Max. Drawbar Pull42000 N
Service BrakeHydraulic —
Parking BrakeMechanical —
Battery Weight590 kg
Operating Pressure for Attachments16 MPa
Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
