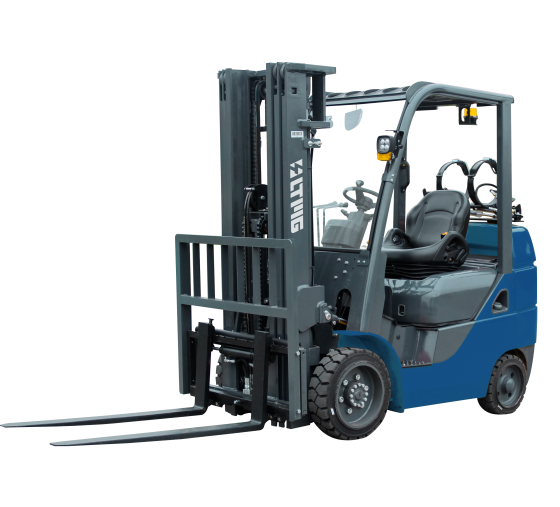

LPG & Gasoline Forklift

FG20

Name: FG20 LPG叉车&汽油叉车-FG20
Brand: LTMG

2000 kgRated Capacity

500 mmLoad Center

3000 mmLift Height

Request an inquiry

Key Features

Supports various emission-compliant engines, including Kubota and Nissan, delivering high power.

Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.

Technical data

型号FG20

Rated Capacity2000 kg

Load Center500 mm

Lift Height3000 mm

Turning Radius2170 mm

Ground Clearance4/19 mm

Gradeability1/20 %

Wheel Base1600 mm

Overall Weight3300 kg

Overall Length (Without forks)2505 mm

Overall Width1160 mm

Mast Lowered Height1995 mm

Mast Extended Height3944 mm

Overhead Guard Height2070 mm

Max. Travel Speed (Full load)18 km/h

Max. Lift Speed (Full load)500 mm/s

Front Tyres7.00-12-12PR /

Rear Tyres6.00-9-10PR /

Battery12/80 V/Ah

Engine ModelNISSAN /

Engine Power37.4/2300 & 46/2800 kw/r.p.m

Free Lift Height240 mm

Fork Size (L×W×T)1070×122×40 mm

Mast Tilt Angle (FR/RR)6/12 deg

Min. Right Angle Stacking Length3635 mm

Min. Right Angle Aisle Width2370 mm

Max. Drawbar Pull (Full load)11.7 KN

Fuel Tank Capacity55/66 L

Transmissions(FWD/RWD)1/1 Manual shift /

Operating Pressure18.5 Mpa

Tire Type(FR/RR)Pneumatic /

Max. Rated Torque176.5/1600 & 168/1800 Nm/t.p.m

Bore x Stroke89×100 & 91×86 mm

Number of Cylinders4 /

Displacement2.488 & 2.237 L

Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
