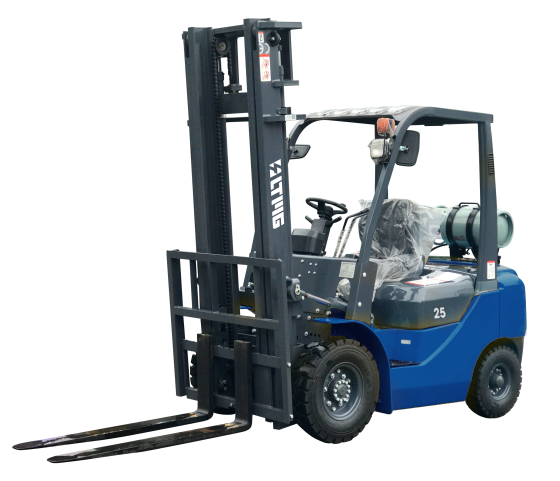

LPG & Gasoline Forklift

FG25

Name: FG25 LPG叉车&汽油叉车-FG25
Brand: LTMG

2500 kgRated Capacity

500 mmLoad Center

3000 mmLift Height

Request an inquiry

Key Features

Focusing on reliability and reduced downtime, the LPG series increases customer productivity.

Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.

Technical data

型号FG25

Rated Capacity2500 kg

Load Center500 mm

Lift Height3000 mm

Fork Size1070×122×40 mm

Mast Tilt Angle (F/R)6/12 Deg

Turning Radius2230 mm

Ground Clearance110 mm

Max. Gradeability18 %

Wheel Base1600 mm

Overall Weight3660 kg

Total Length without Fork2580 mm

Overall Width1160 mm

Mast Lowered Height1995 mm

Mast Extended Height3944 mm

Overhead Guard Height2070 mm

Max. Travel Speed (Full load)18 km/h

Max. Lifting Speed (Full load)500 mm/s

Front Tyres7.00-12-12PR -

Rear Tyres6.00-9-10PR -

Battery12/80 V/Ah

Engine ModelNISSAN -

Engine Power37.4/2300 / 46/2800 kW/rpm

Free Lift Height240 mm

Min. Right Angle Stacking Length3695 mm

Min. Right Angle Aisle Width2430 mm

Max. Drawbar Pull (Full load)11.4 kN

Fuel Tank Capacity55/66 L

Transmissions (FWD/RWD)1/1 Manual shift -

Operating Pressure18.5 MPa

Tire TypePneumatic -

Engine Max. Rated Torque176.5/1600 / 168/1600 Nm/rpm

Engine Bore × Stroke89×100 / 91×86 mm

Engine Number of Cylinders4/4 -

Engine Displacement2.488 / 2.237 L

Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
