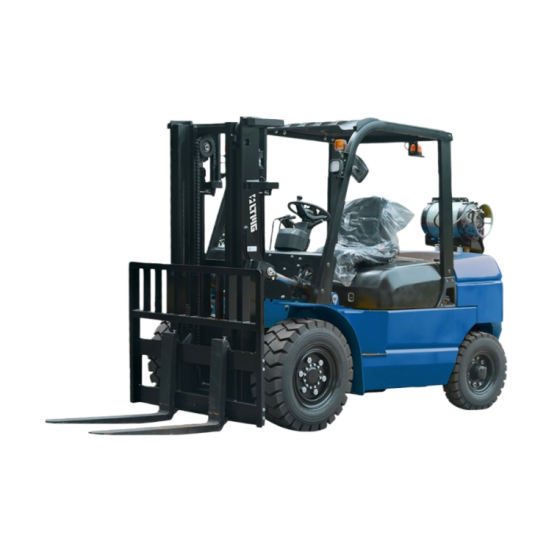

LPG & Gasoline Forklift

FG50

Name: FG50 LPG叉车&汽油叉车-FG50(MIN)
Brand: LTMG

5000 kgRated Capacity

500 mmLoad Center

3000 mmLift Height

Request an inquiry

Key Features

By maximizing reliability and minimizing downtime, the LPG series significantly enhances customer productivity.

Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.

Technical data

型号FG50

Power TypeLPG -

Rated Capacity5000 kg

Load Center500 mm

Lift Height3000 mm

Fork Size1070×150×50 mm

Mast Tilt Angle (F/R)6°/12° Deg

Turning Radius2910 mm

Ground Clearance150 mm

Front Overhang579 mm

Max. Gradeability20 %

Wheel Base2100 mm

Overall Weight6400 kg

Total Length without Fork3260 mm

Overall Width1460 mm

Mast Lowered Height2270 mm

Mast Extended Height4165 mm

Overhead Guard Height2340 mm

Max. Travel Speed (Full load)25 km/h

Max. Lifting Speed (Full load)400 mm/s

Front Tyres300-15-18PR mm

Rear Tyres7.00-12-12PR mm

Battery(12/80) x2 V/Ah

Engine ModelPSI4.3L -

Engine Power76/2300 kW/rpm

Transmissions TypeHydraulic -

Transmissions Stage (FWD/RVS)2/2 -

Engine ManufacturerPSI -

Engine Max. Rated Torque324/1700 N·m/rpm

Engine Number of Cylinders6 -

Engine Bore × Stroke101.6×88.4 mm

Engine Displacement4300 cc

Fuel Tank Capacity125 L

Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
