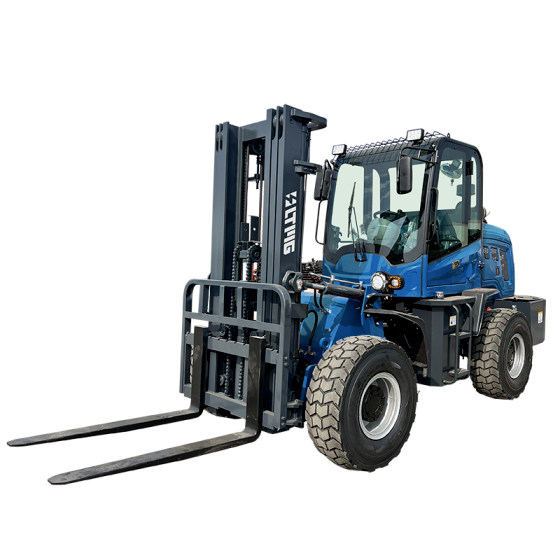

Articulated Rough-terrain Forklift

LTR15(Front Wheel Steering)

Name: LTR15(Front Wheel Steering) 装载机式越野叉车-LTR15（前轮转向）
Brand: LTMG

1500 kgRated Capacity

3000 mmLift Height

4600 mmTurning Radius

Request an inquiry

Key Features

The inter-cooling, scattered water, oil scattered are independent layout, which greatly increase the engine, gearbox and other core components quality.

Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.

Technical data

型号LTR15(Front Wheel Steering)

Rated Capacity1500 kg

Lift Height3000 mm

Fork length1220 mm

Mast Tilt Angle (F/R)12° Deg

Turning Radius4600 mm

Ground Clearance250 mm

Max. Gradeability<35° %

Overall Weight2680 kg

Mast Lowered Height2200 mm

Engine ModelYunnei490 /

Rated output42 / 2200-2400 kW/rpm

Dimension (L*W*H)310*135*230 cm

Mast Width148 mm

Frame ArticulationFront 200 / Rear 150 mm

Tires10.00-16 mm

Max. Rated Torque220-450 / 1500-1800 N·m/rpm

No. of Cylinders4 /

Cylinder Diameter * Stroke102x115 mm

Displacement3.76 L

Drive Model4WD /

Gearbox265 /

Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
