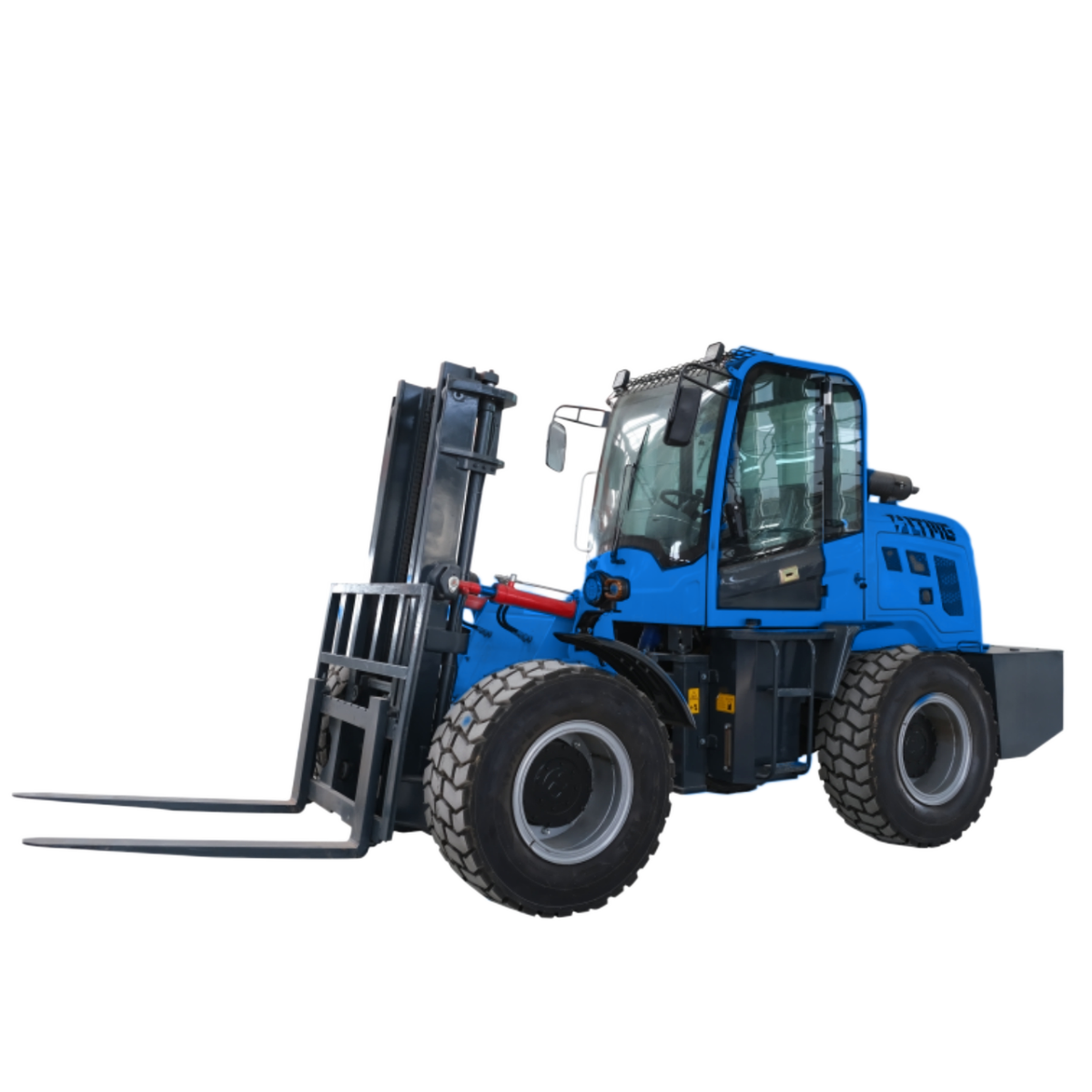

Articulated Rough-terrain Forklift

LTR40(Front Wheel Steering)

Name: LTR40(Front Wheel Steering) 装载机式越野叉车-LTR40（前轮转向）
Brand: LTMG

4000 kgRated Capacity

3000 mmLift Height

4800 mmTurning Radius

Request an inquiry

Key Features

The infinitely variable gearbox operates lightly, reducing operator fatigue and increasing the speed of handling operations.

Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.

Technical data

型号LTR40(Front Wheel Steering)

Rated Capacity4000 kg

Lift Height3000 mm

Mast Tilt Angle (F/R)12° Deg

Turning Radius4800 mm

Ground Clearance310 mm

Max. Gradeability<35° %

Overall Weight5220 kg

Mast Lowered Height2350 mm

Engine ModelYunnei4100 -

Engine Power65/3200 kW/rpm

Fork Length1220 mm

Dimension (LWH)430*198*260 cm

Mast Width180 mm

Frame ArticulationFront400/Rear300 mm

Tires16/70-20 -

Max. Torque285/1200-2800 N·m/rpm

No. of Cylinders4 -

Cylinder Diameter * Stroke81x97 mm

Displacement1.99 L

Drive Model4WD -

Gearbox280 -

Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
