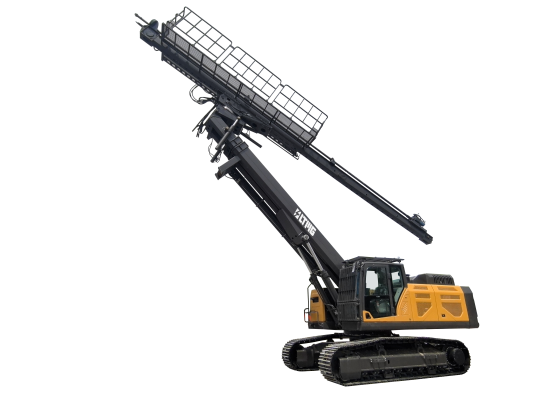

Aim rod drilling rig
DR380A
16000 × 3190 × 3400 mmOverall Dimensions
Φ76-180 mmDrilling Diameter Range
20 mDrilling Depth
Key Features
Realize vertical ground drilling, slope drilling, and other drilling applications with the multi-angle rotating drilling arm.
Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.
Technical data
型号DR380A
Overall Dimensions16000 × 3190 × 3400 mm
Track Shoe Width600 mm
Engine BrandCummins / Deutz /
Rated PowerCummins National IV: 221; Cummins Euro V: 173; Deutz Euro V: 200; Cummins National II: 194 kW
Drilling Diameter RangeΦ76-180 mm
Drilling Depth20 m
Travel Speed3.8 / 2 (High/Low) km/h
Gradeability35 °
Operating Weight38650 kg
Engine ModelCummins National IV: B6.7CS4 300C; Cummins Euro V: B6.7; Deutz Euro V: TCD7.8L6; Cummins National II: 6CTAA8.3-C260 /
Rated Engine SpeedCummins National IV: 2200; Cummins Euro V: 2000; Deutz Euro V: 2500; Cummins National II: 2200 rpm
Emission StandardNational IV / Euro V / Euro V / National II /
Main Pump Flow2 × 247 L/min
Main System Pressure32 MPa
Pilot System Pressure4 MPa
Air Compressor Working Pressure10 bar
Air Compressor Discharge Volume10 m³/min
Drill Pipe DiameterΦ65/76 mm
Maximum Hole Height18 m
Single-pass Drilling Depth10.8 m
Maximum Feed Force43 kN
Maximum Pullback Force50 kN
Maximum Drill Pipe Torque4000/9000 N·m
Wheelbase4099 mm
Track Gauge2590 mm
Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
