Key Features
Intelligent Status Display & Ultra-Smooth Shifting.HD color screens provide real-time fault alerts while the next-gen electronic gearbox delivers seamless shifting comfort.
Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.
Technical data

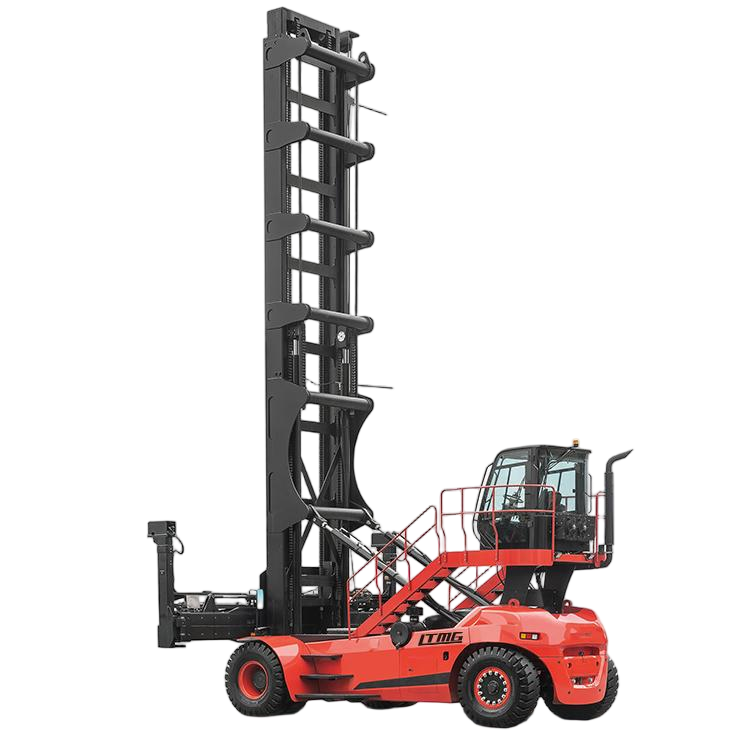

ModelCH90
Power TypeDiesel —
Rated Capacity9000 kg
Load Center1220 mm
Lift Height18670 mm
Tilt of mast/fork carriage forward/backward46085 α/β(°)
Turning Radius6000 mm
Ground clearance, laden, below mast290 mm
Gradeability, laden22 %
Wheelbase4550 mm
Overall Weight39800 kg
Length to face of forks6850 mm
Overall/Total Width4120 / 2700 mm
Height, mast lowered10715 mm
Height, mast extended19100 mm
Height of overhead cabin4600 mm
Max Travel Speed (Full load/unladen)26/28 km/h
Max Lift/Lifting Speed (Full load/unladen)550/620 mm/s
Front Tyres14.00-24-28PR —
Rear Tyres14.00-24-28PR —
Battery2×12/150 V/Ah
Engine ModelVolvo TAD851VE —
Engine Power185 / 2200 kW/rpm
Operator TypeSeated —
Stacking Height (Containers 8'6" / 9'6")46209 —
Load Distance (Center of Drive Axle to Fork)1340 mm
Tyre TypePneumatic —
Wheels Quantity (Front / Rear)46114 —
Tread (Front)3280 mm
Tread (Rear)2300 mm
Lift Height (Min in Twist Locks)2200 mm
Seat Height Relating to SIP3500 mm
Coupling Height740 mm
Overall Length7000 mm
Spreader Sideshift±600 mm
Spreader Width (Retracted)6100 mm
Spreader Width (Extended)12240 mm
Ground Clearance (Centre of Wheelbase)300 mm
Aisle Width (8'6" / 9'6")10200 / 14000 mm
Minimum Pivoting Point Distance2085 mm
Lowering Speed (Laden / Unladen)0.5 / 0.55 m/s
Drawbar Pull (Laden)160000 N
Service BrakeWet disc brake —
Parking BrakeSpring applied, hydraulic release multi-disc brake —
Engine Emission StandardStageIIIA/Tier3 —
Number of Cylinders / Displacement6 / 7700 — / cm³
Vehicle Electrical System Voltage24 V
Rated Torque1160 / 1350 N·m/r/min
Transmissions ManufacturerDANA —
Transmission Stage (FWD/RVS)46084 —
Operating Pressure for Attachments250 bar
Oil Volume for Attachments288 l/min
Hydraulic Tank Capacity (Drain & Refill)460 liter
Fuel Tank Capacity620 liter
Sound Pressure Level at Driver's Seat72 dB (A)
Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
