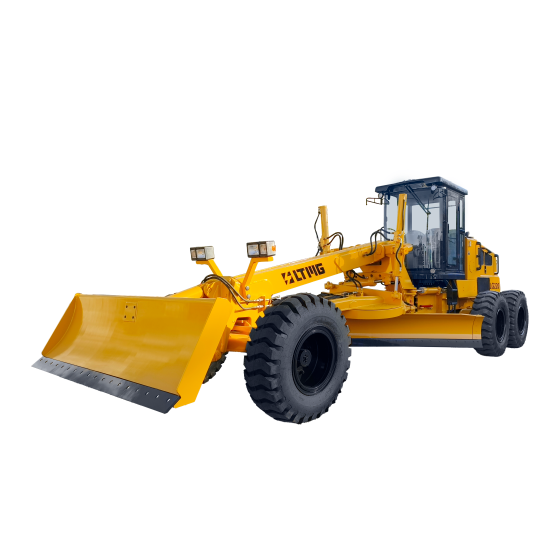

Diesel Motor Grader
LG220
16900 kgOperating Weight
160 kWRated Power
8605*2695*3420 mmOverall Dimensions
Key Features
Center articulated joint and tilting steering front wheels can realize crab movement, improving the machine's flexibility.
Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.
Technical data
型号LG220
Operating Weight16900 kg
Front Axle Load5820 kg
Rear Axle Load11080 kg
Max. Forward Speed36.8 km/h
Min. Backward Speed24.8 km/h
Gear NumberF6/R3 /
Turning Radius7800 mm
Hydraulic System Pressure18 Mpa
Blade Length x Height3965x610 mm
Front Wheelbase2150 mm
Rear Wheelbase2340 mm
Wheelbase6362 mm
Engine ModelCummins 6CTA8.3 /
Rated Power160 kW
Overall Dimensions8605*2695*3420 mm
Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
