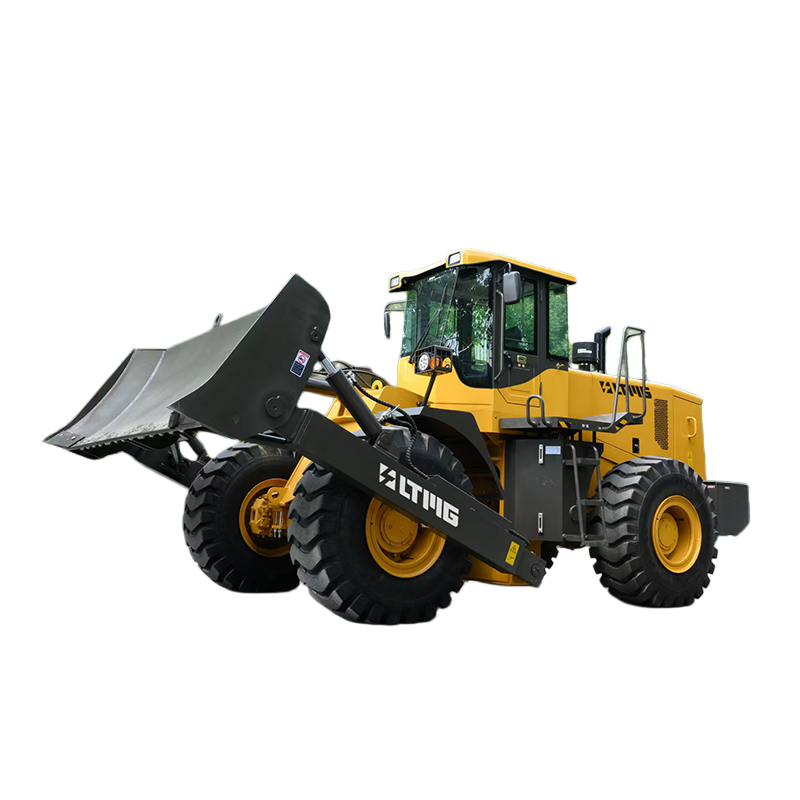

Diesel Wheeled Bulldozer
TL220
7800×4200×3700 mmOverall Dimensions
17000 kgOperating Weight
162 kWRated Power
Key Features
Full hydraulic steering, power-shift transmission and hydraulically actuated work equipment ensure light, flexible and comfortable operation.
Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.
Technical data
型号TL220
Overall Dimensions7800×4200×3700 mm
Wheelbase3300 mm
Wheel Track2240 mm
Operating Weight17000 kg
Blade Height1000 mm
Max Lift Height of Dozer Blade1060 mm
Max Digging Depth of Dozer Blade400 mm
Blade Width3600 mm
Gradeability25 °
Engine ModelWeichai STEYR WD10G220E22 /
Rated Power162 kW
Displacement9.726 L
Gear4 Forward / 4 Reverse /
Max Travel Speed40 km/h
AxleFeicheng/Laiyang /
Wheelside Reduction TypeSingle Stage Planetary /
Tire Size23.5-25 /
Min. Turning Radius (Outside of Bucket)7268 mm
Max. Turning Angle35°±1 °
System Working Pressure20.3 MPa
Brake SystemAir assisted oil disc on four wheels /
Parking BrakeAir cutting control inner expand hoof /
Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
