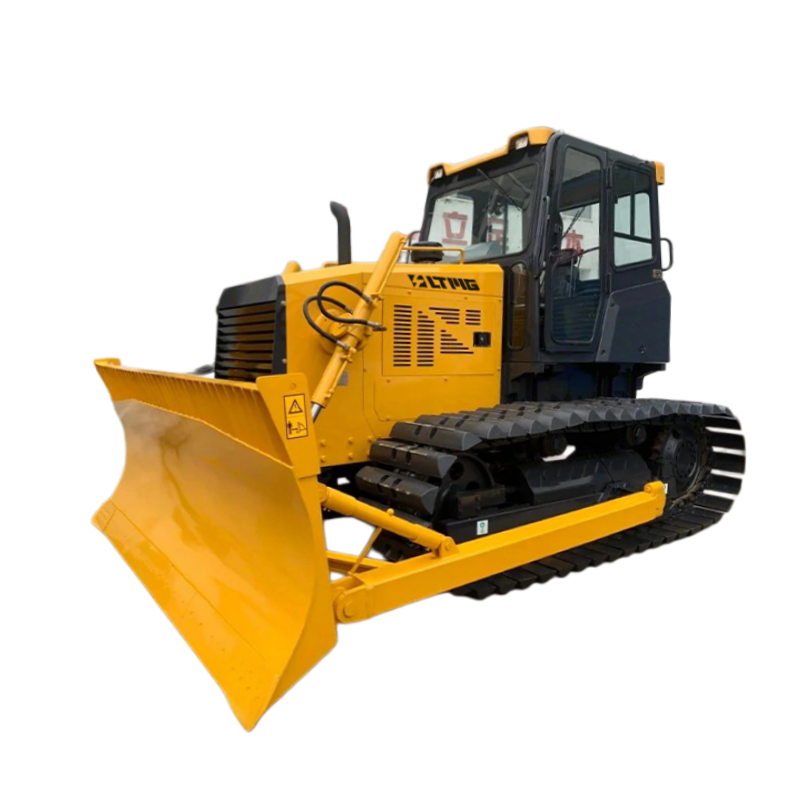

Diesel Crawler Bulldozer
TS120
12800 kgOperating Weight
93/2000 kW/r/minEngine Rated Power / Speed
4600×3450×3100 mmOverall Dimensions (L×W×H)
Key Features
British Ricardo joint-venture technology engine with National II emission standard, low noise, large torque, energy efficiency and environmental friendliness.
Technical data
型号TS120
Operating Weight12800 kg
Max Towing Force115 kN
Engine ModelLR6A3Z-20 /
Engine Rated Power / Speed93/2000 kW/r/min
Track Width720 mm
Ground Pressure37 kPa
Overall Dimensions (L×W×H)4600×3450×3100 mm
Bulldozer Blade (W×H)3450×1060 mm
Forward Speed2.6～10.6 km/h
Reverse Speed3.8～7.0 km/h
Blade Max Lifting Height894 mm
Blade Max Digging Depth400 mm
Towing EquipmentFixed Type /
